TFLM vs Renesas eAI Translator

The goal of this study is to compare the performance of TensorFlow Lite for Microcontrollers (TFLM) and Renesas eAI Translator.

According to the eAI Translator's documentation, it should be able to convert RNN models. However, we faced some errors during the conversion (1). As a result, this study focuses on FC, CNN, and TinyMLPerf models. Also, eAI Translator is designed to work with Renesas boards, so we only have the RenesasRX65N board in our study.

  1. 🙋‍♂️ Still, we guess it should be possible to convert RNN models with some modifications and under certain conditions.


Model Type:

Models

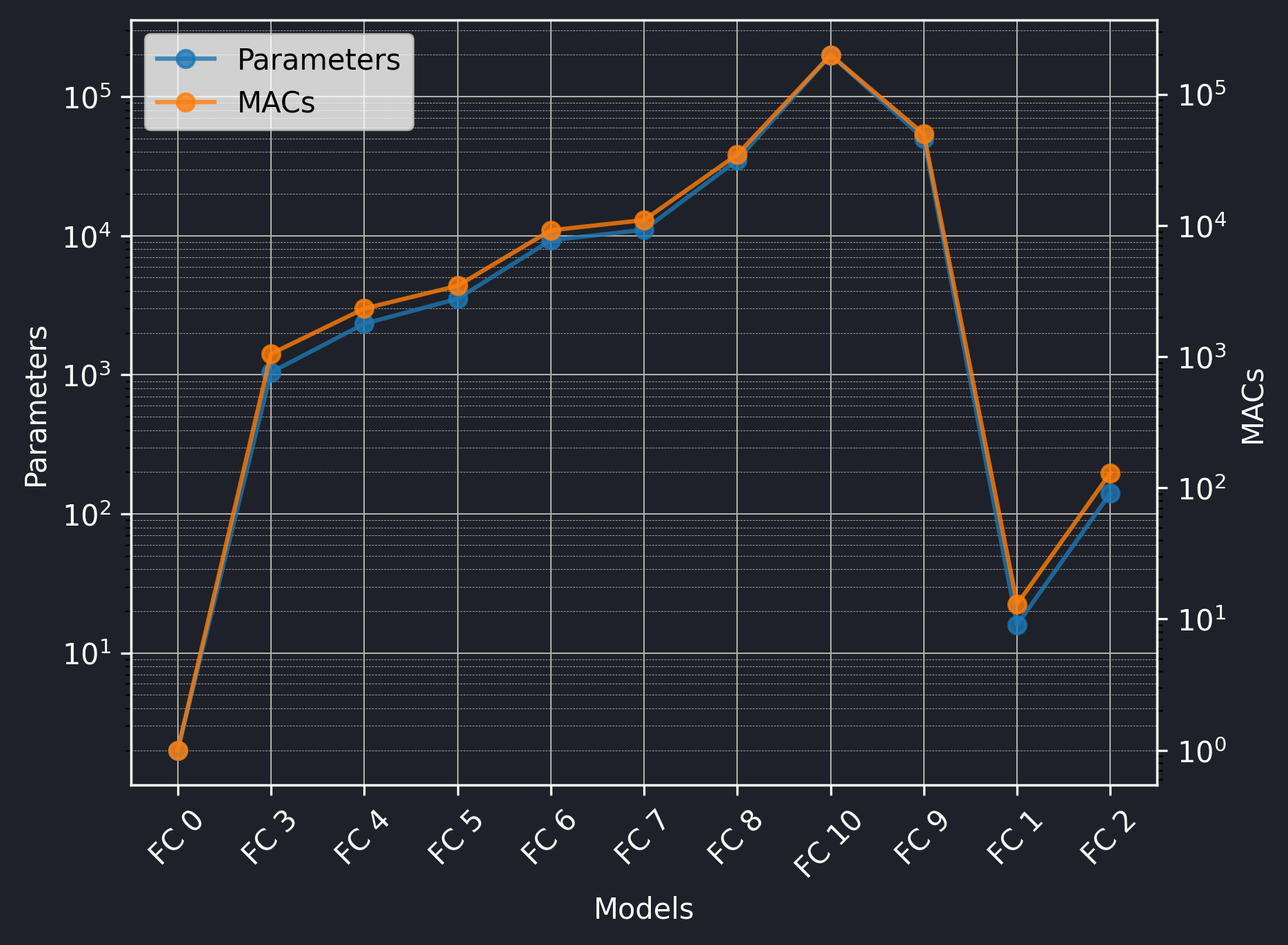

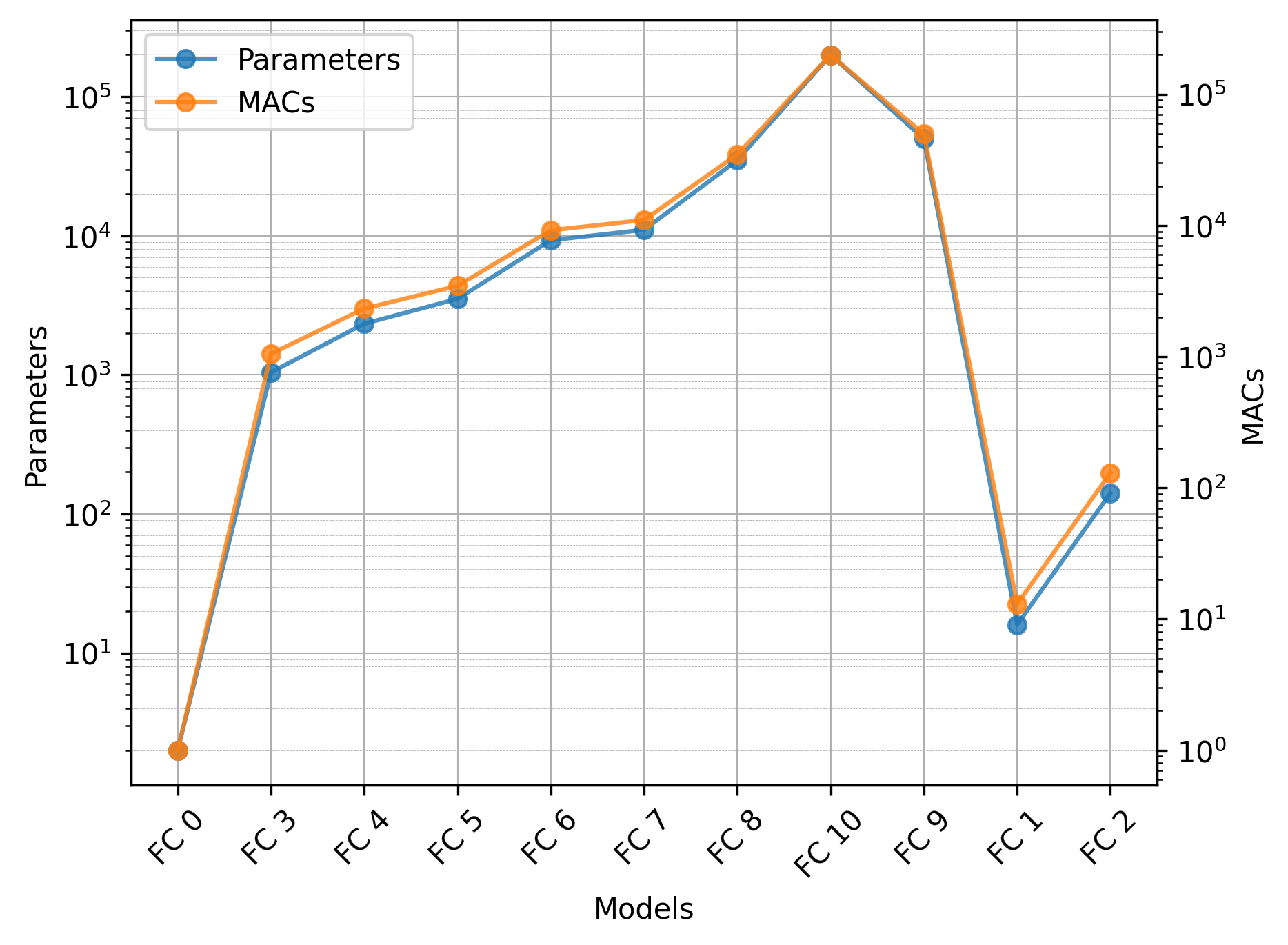

FC parameters and MACs FC parameters and MACs
FC parameters and MACs

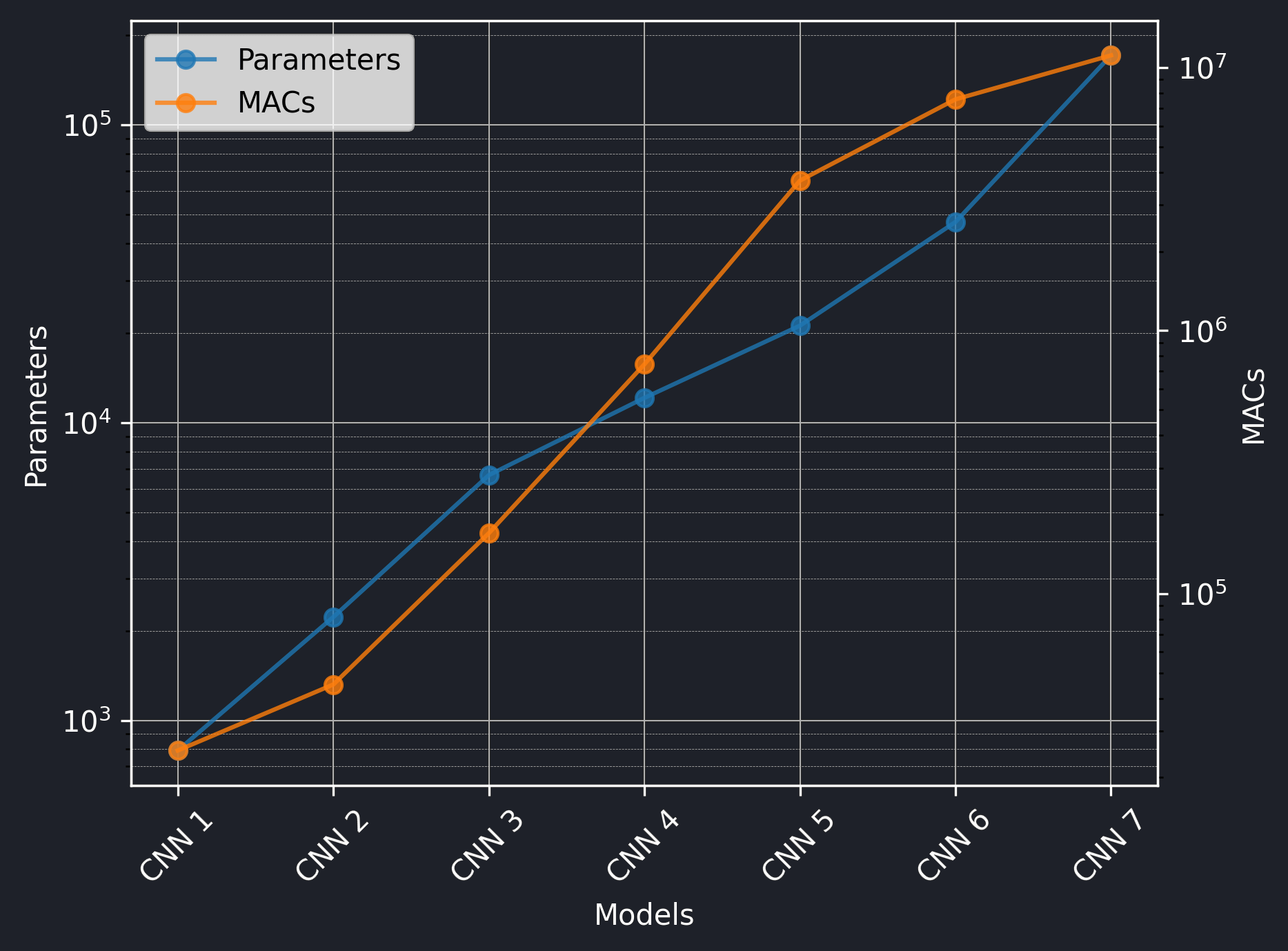

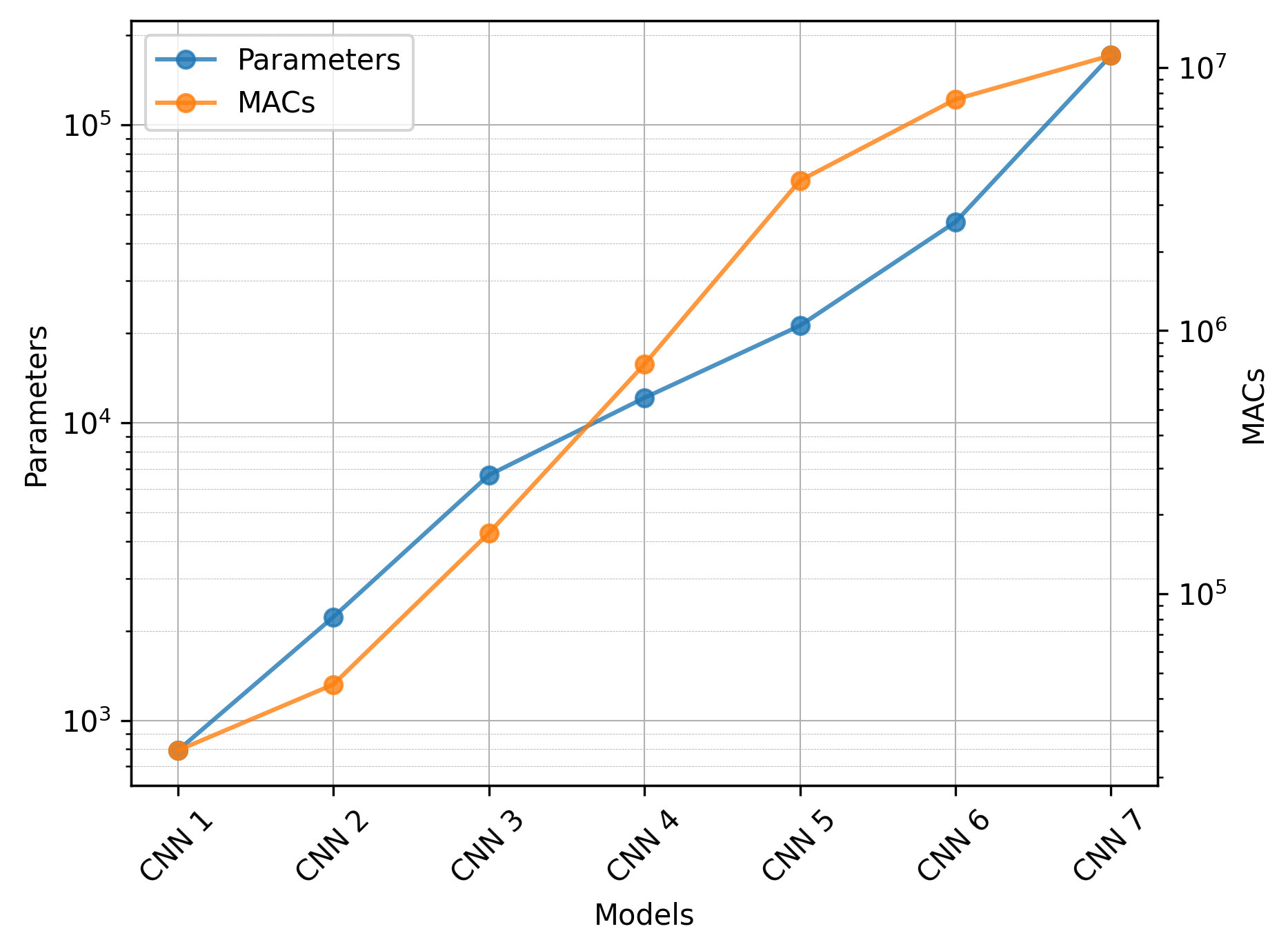

CNN parameters and MACs CNN parameters and MACs
CNN parameters and MACs

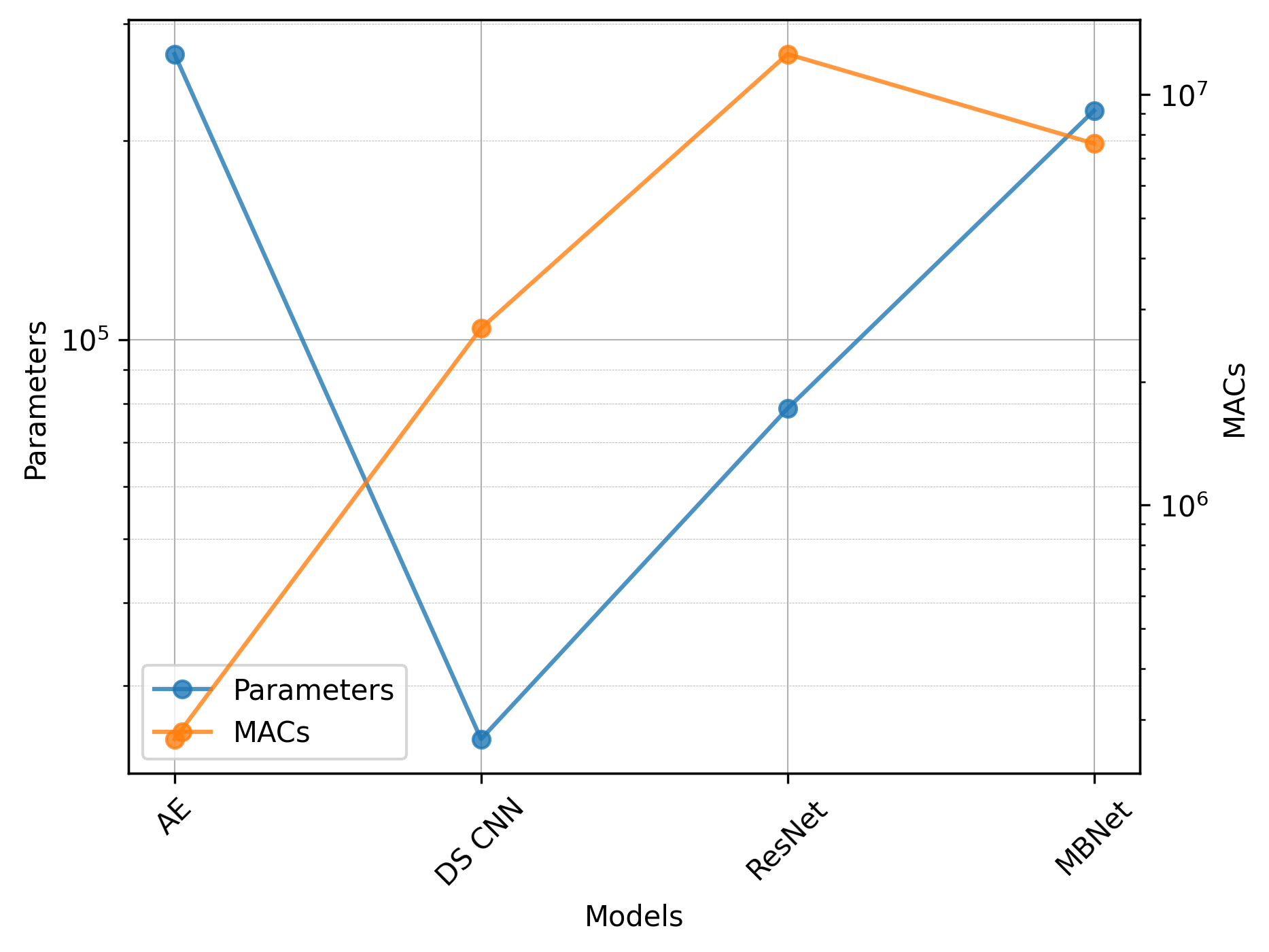

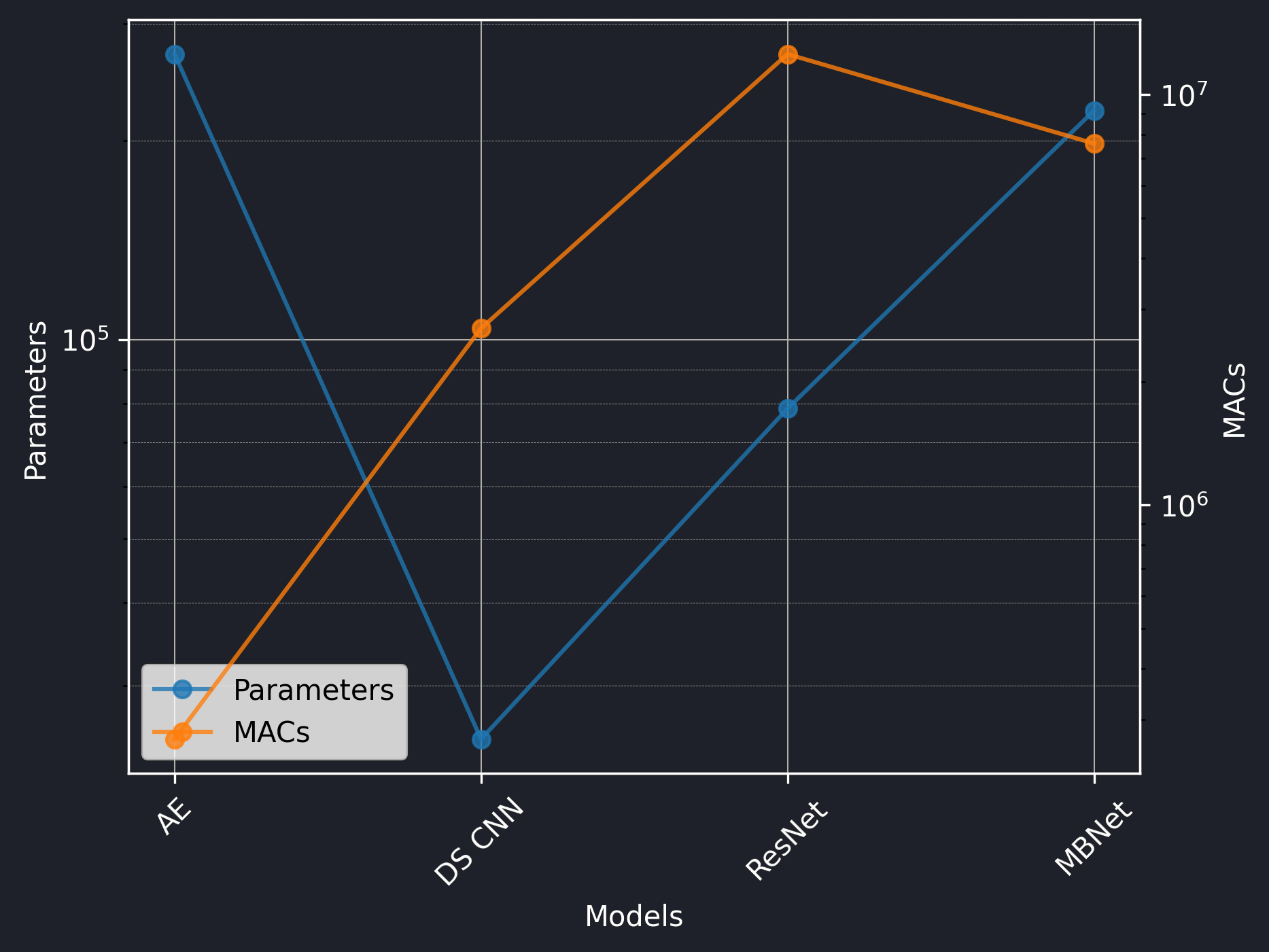

TinyMLPerf parameters and MACs TinyMLPerf parameters and MACs
TinyMLPerf parameters and MACs

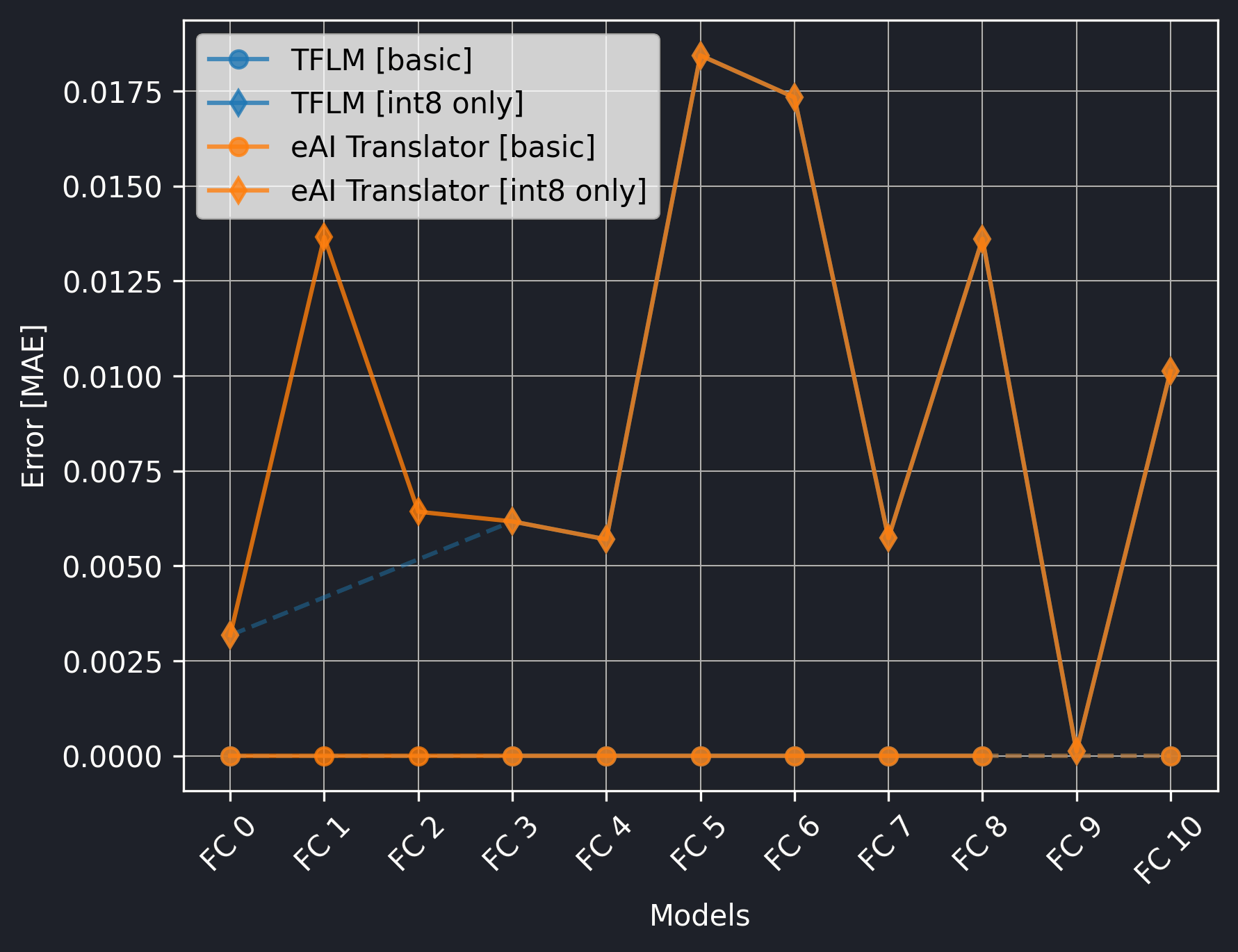

Error

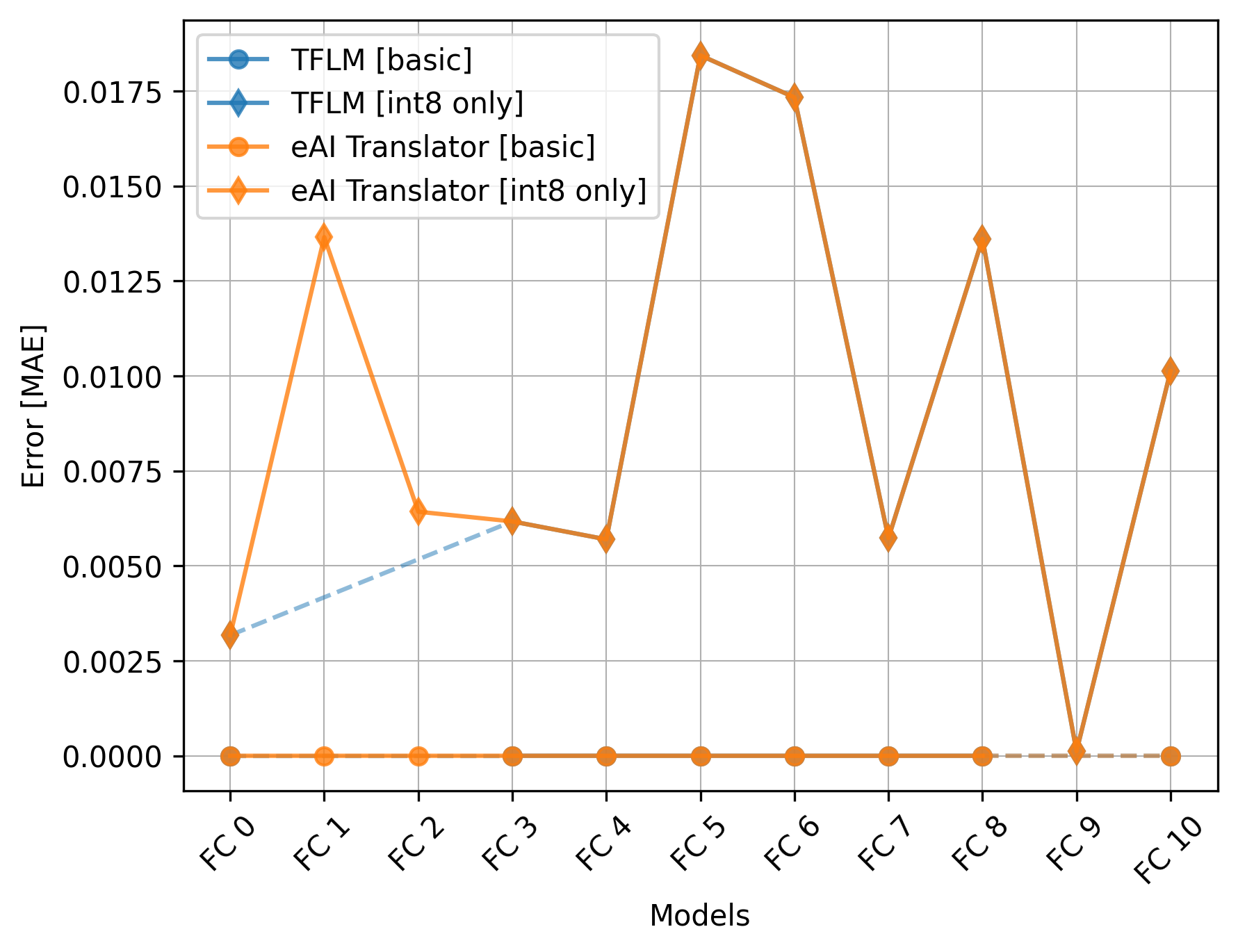

FC - RenesasRX65N FC - RenesasRX65N
FC - RenesasRX65N

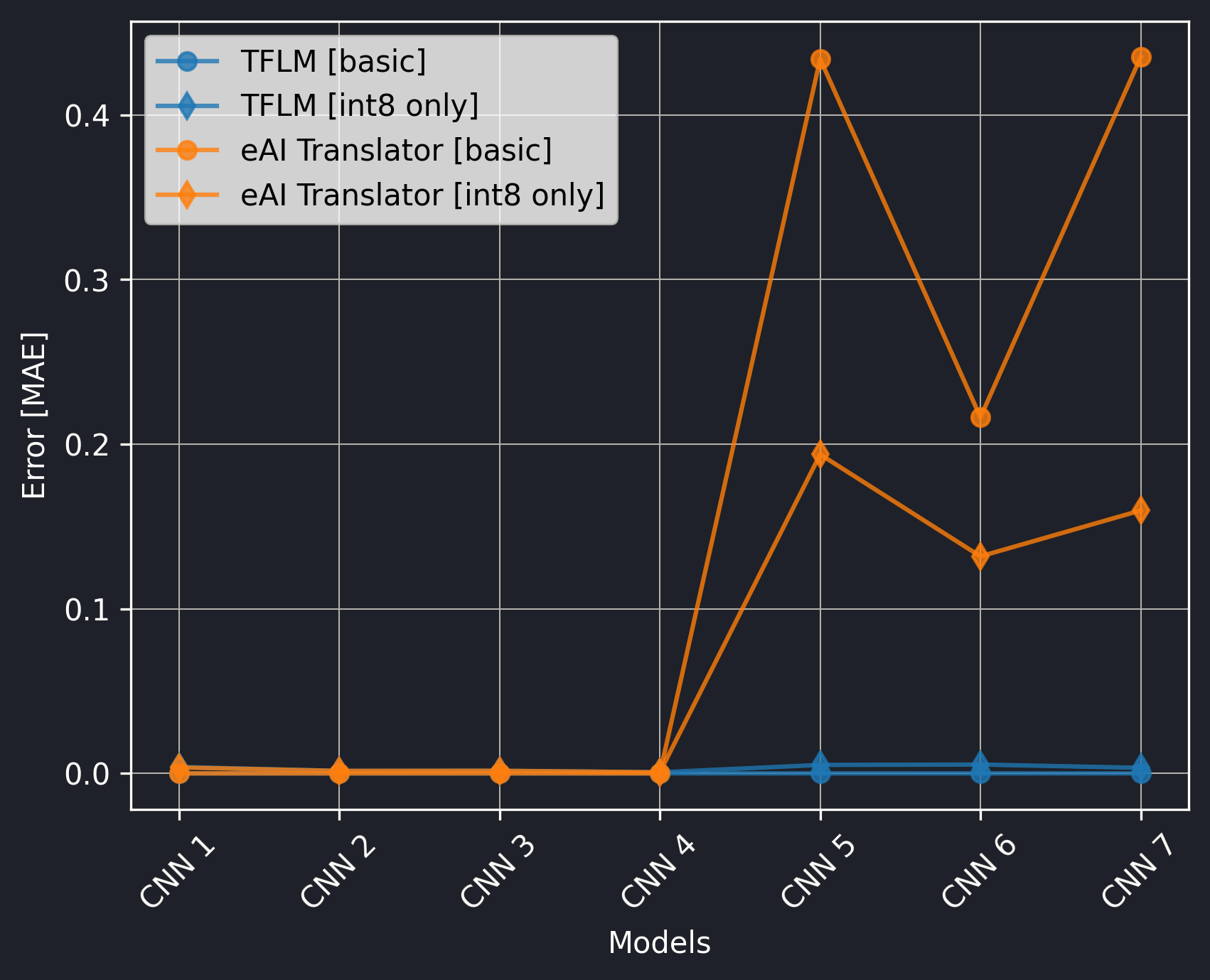

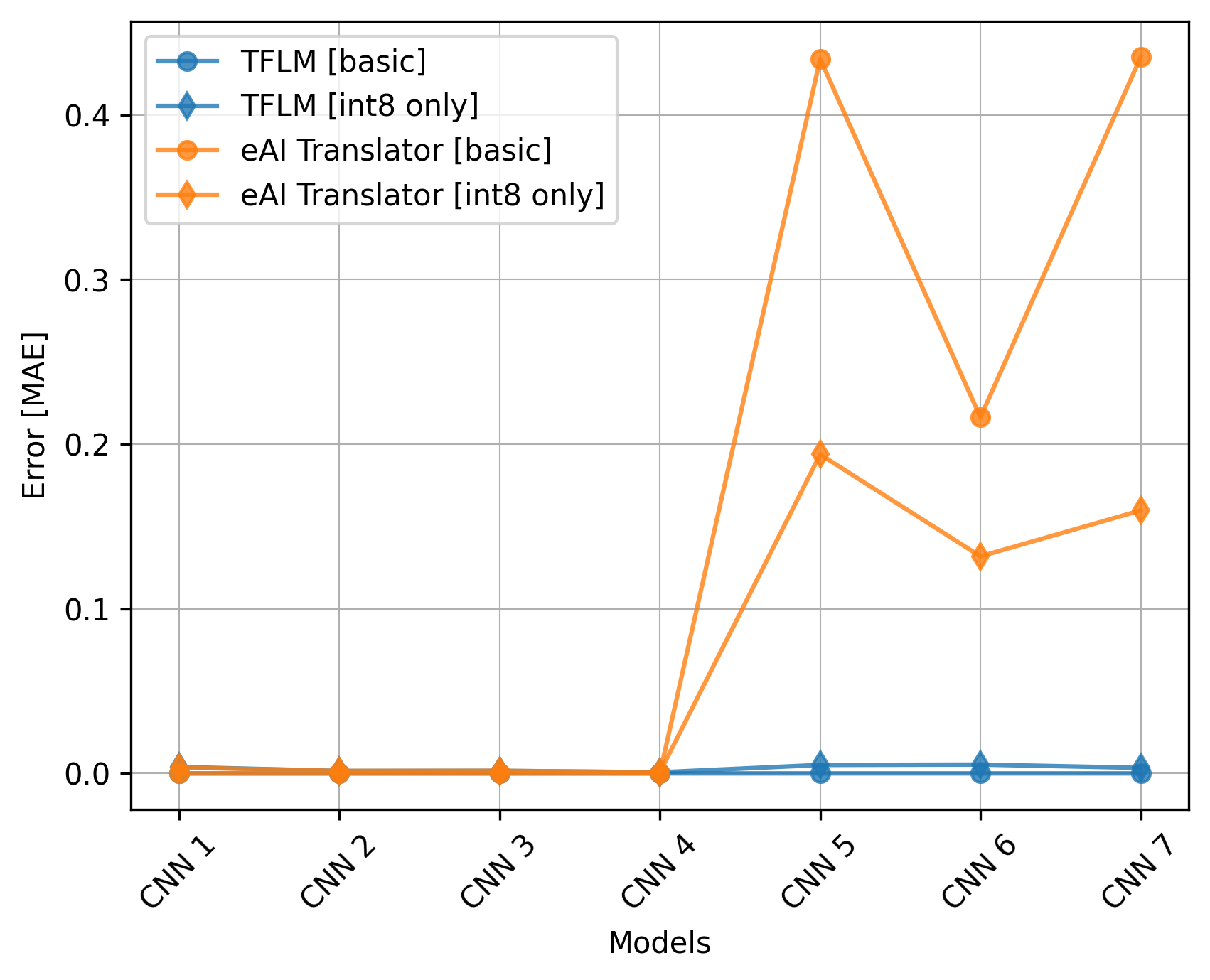

CNN - RenesasRX65N CNN - RenesasRX65N
CNN - RenesasRX65N

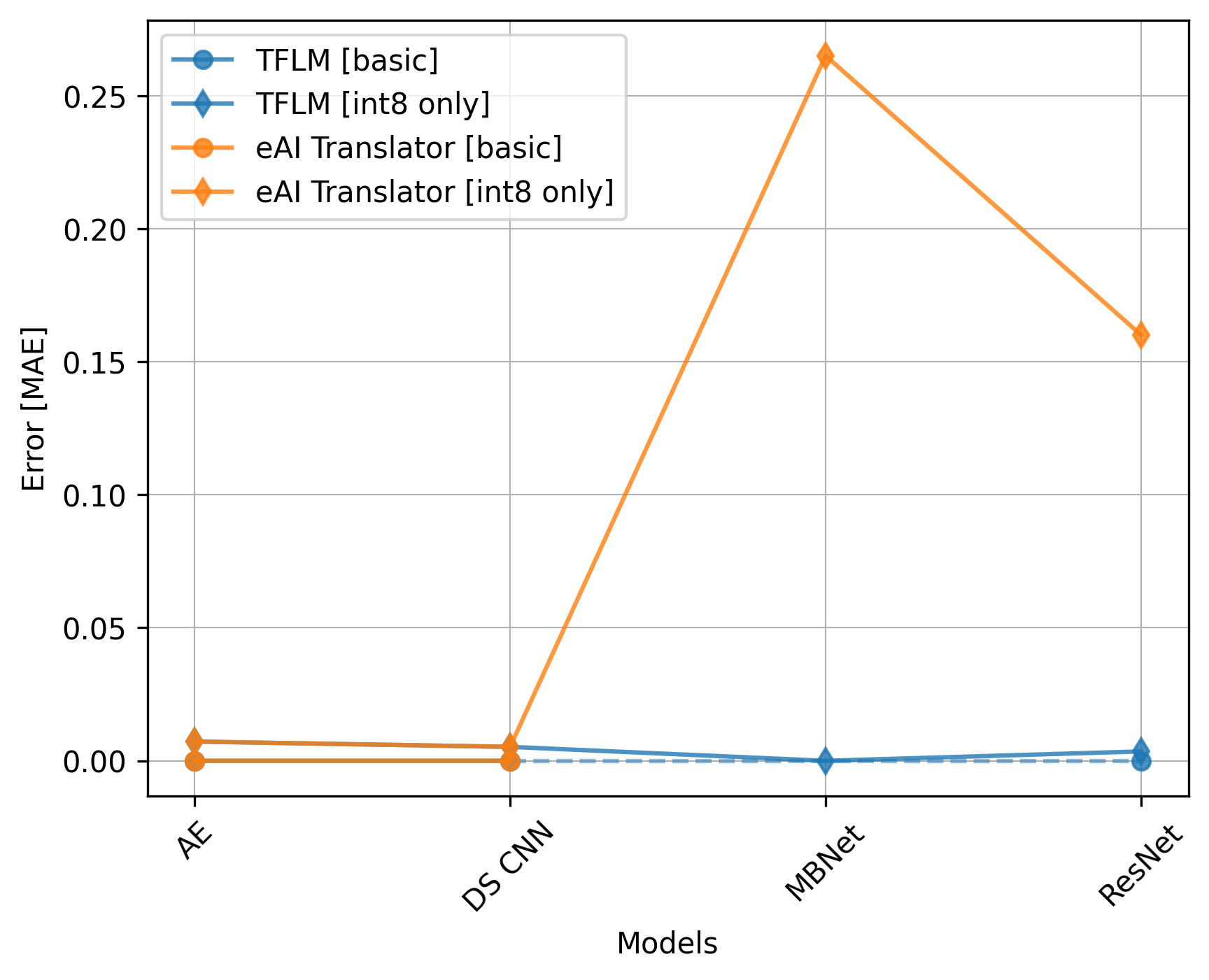

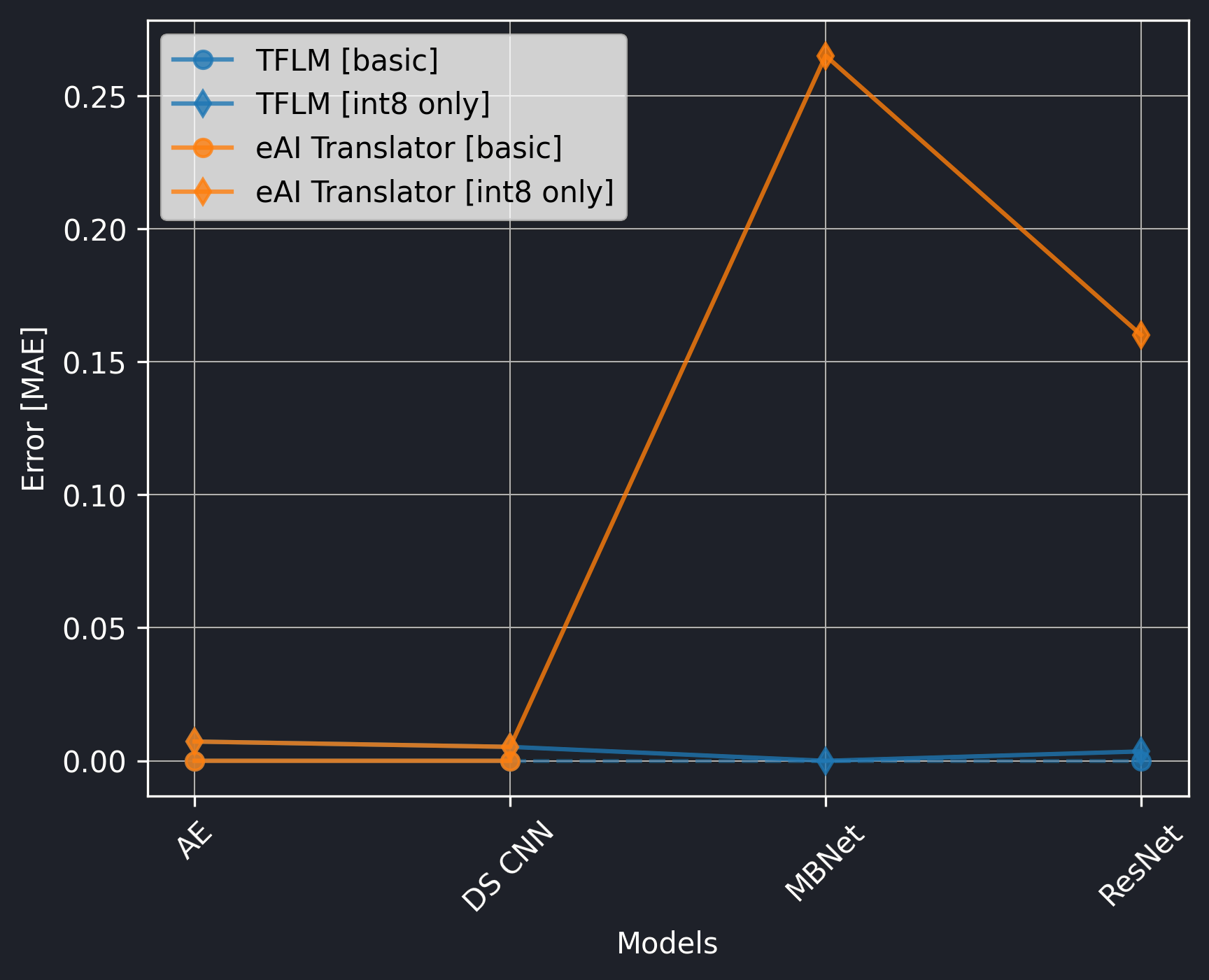

TinyMLPerf - RenesasRX65N TinyMLPerf - RenesasRX65N
TinyMLPerf - RenesasRX65N

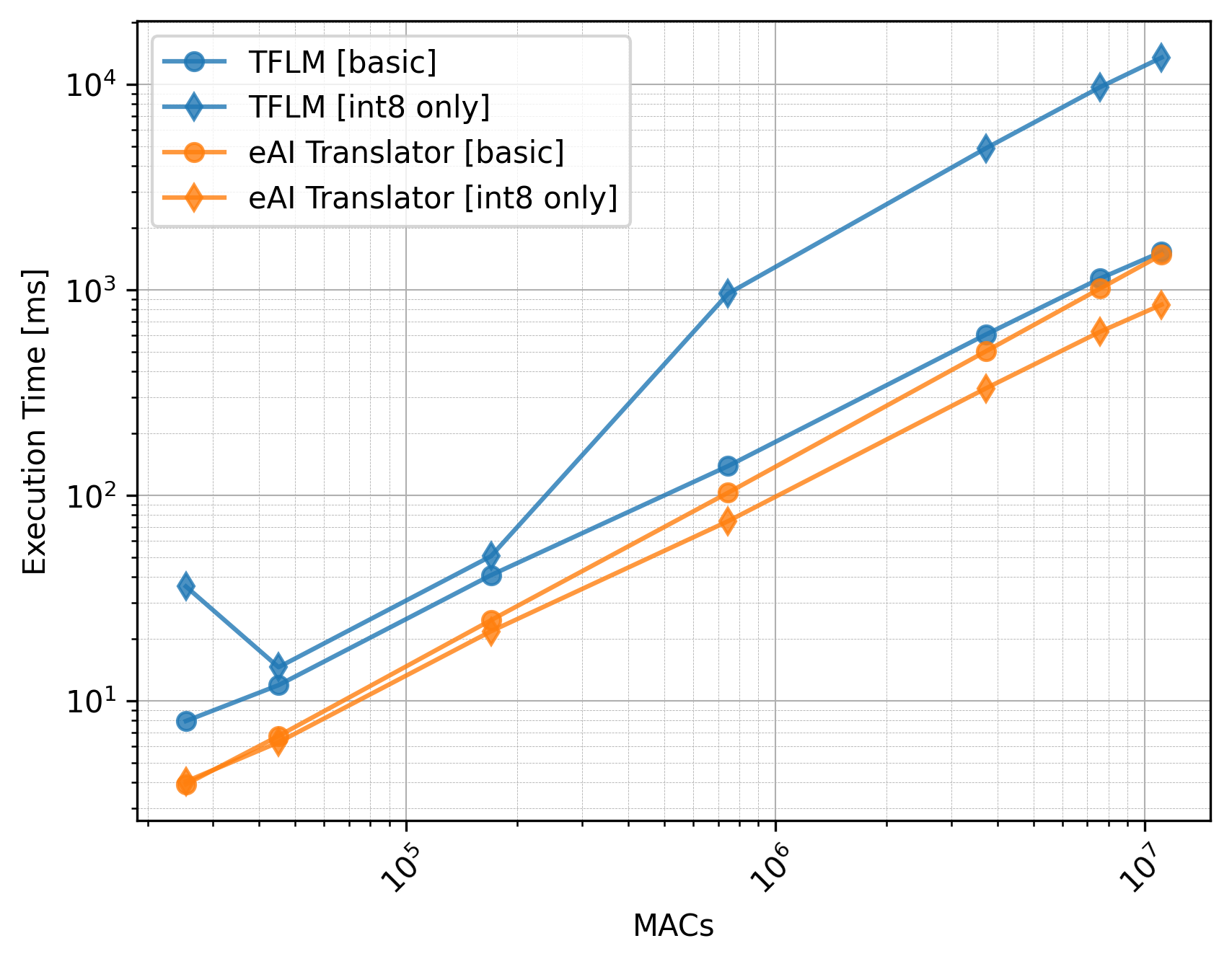

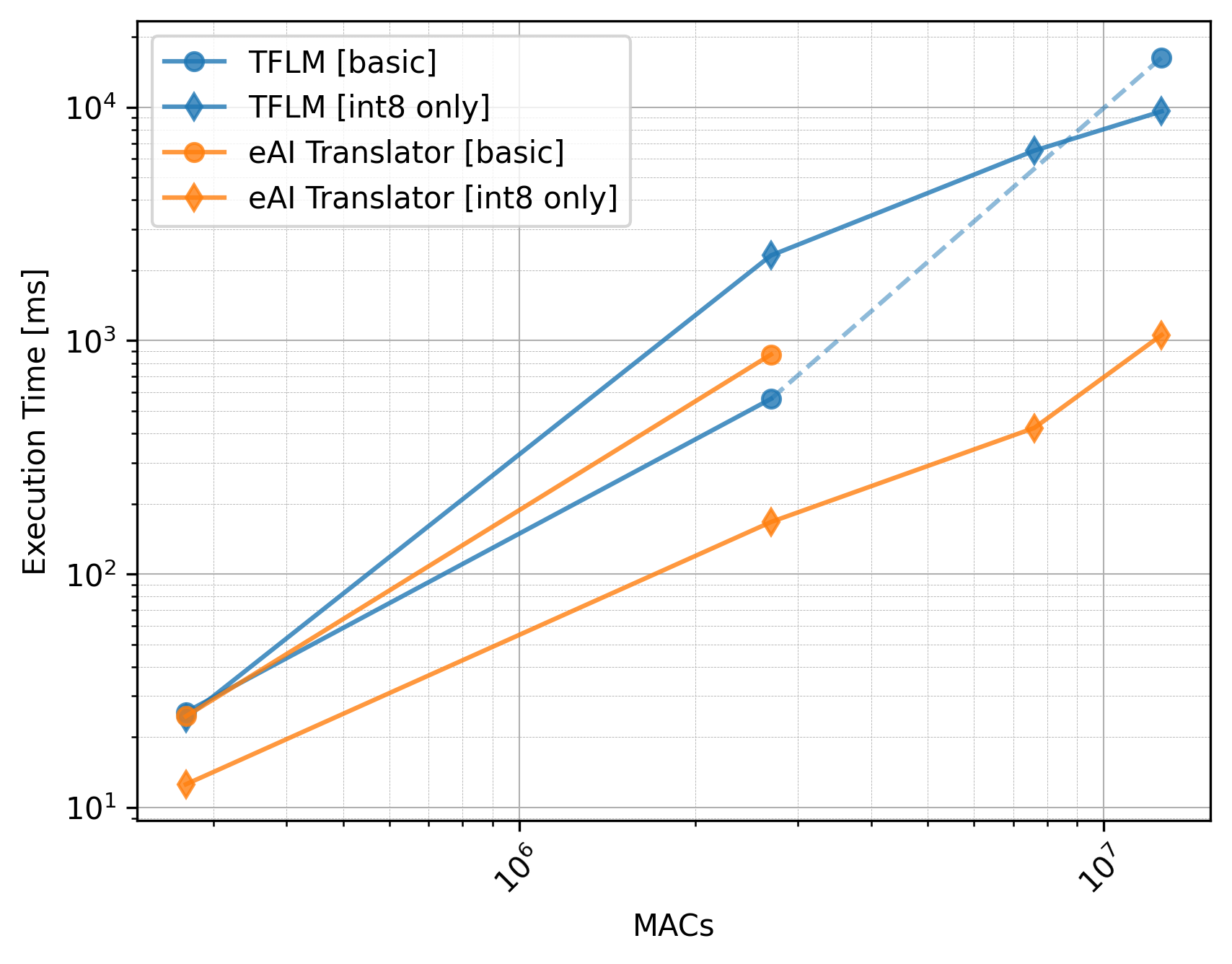

Execution Time

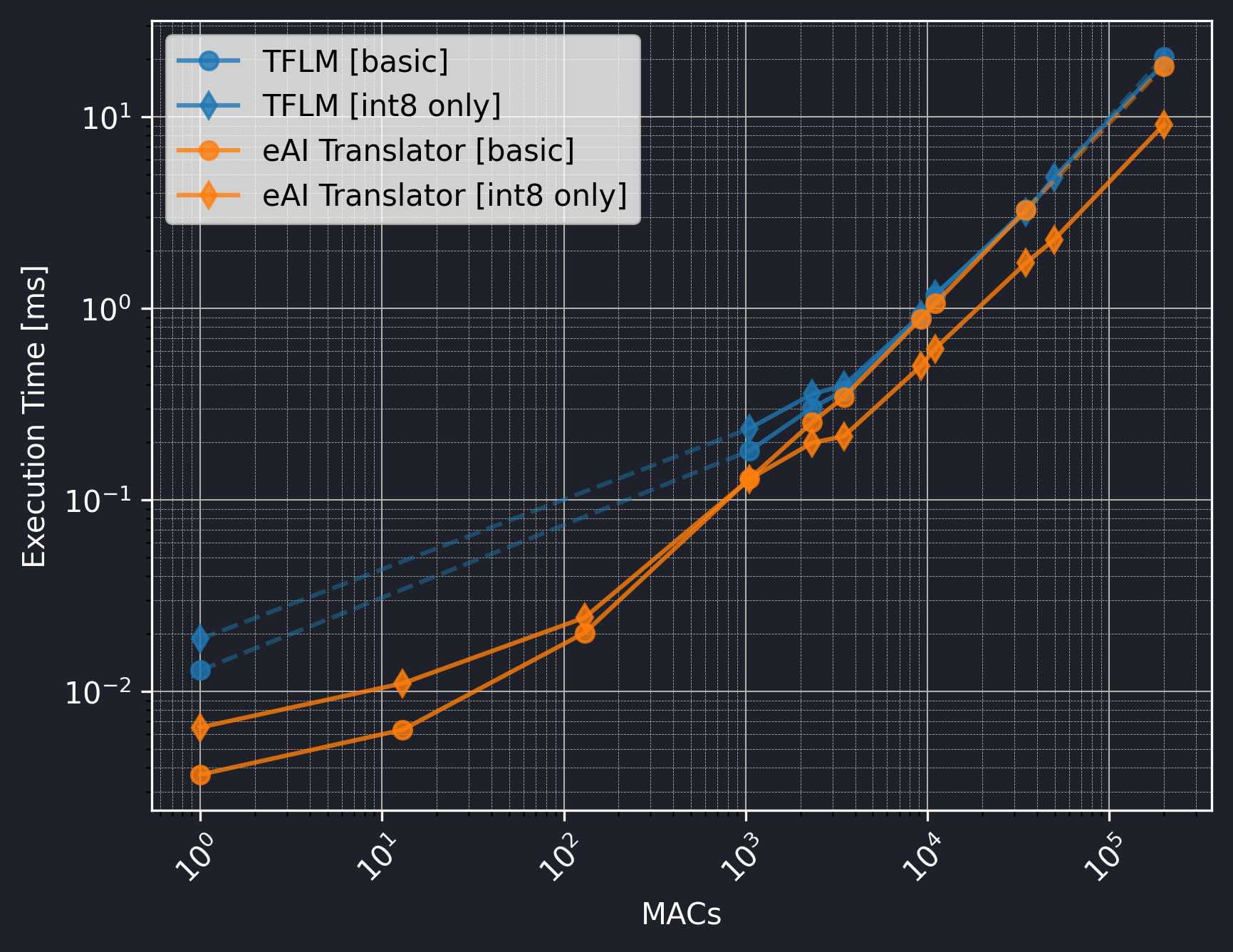

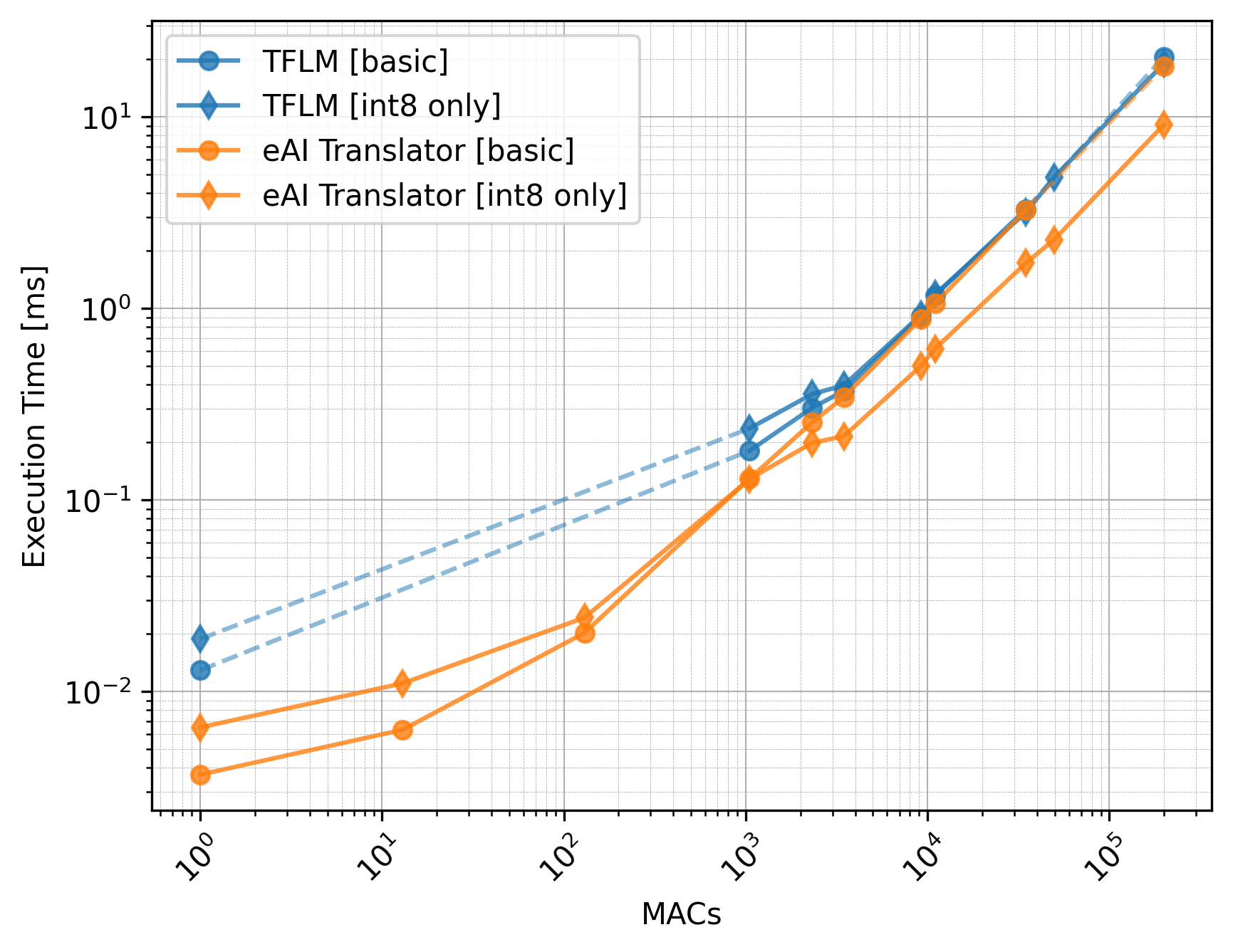

FC - RenesasRX65N FC - RenesasRX65N
FC - RenesasRX65N

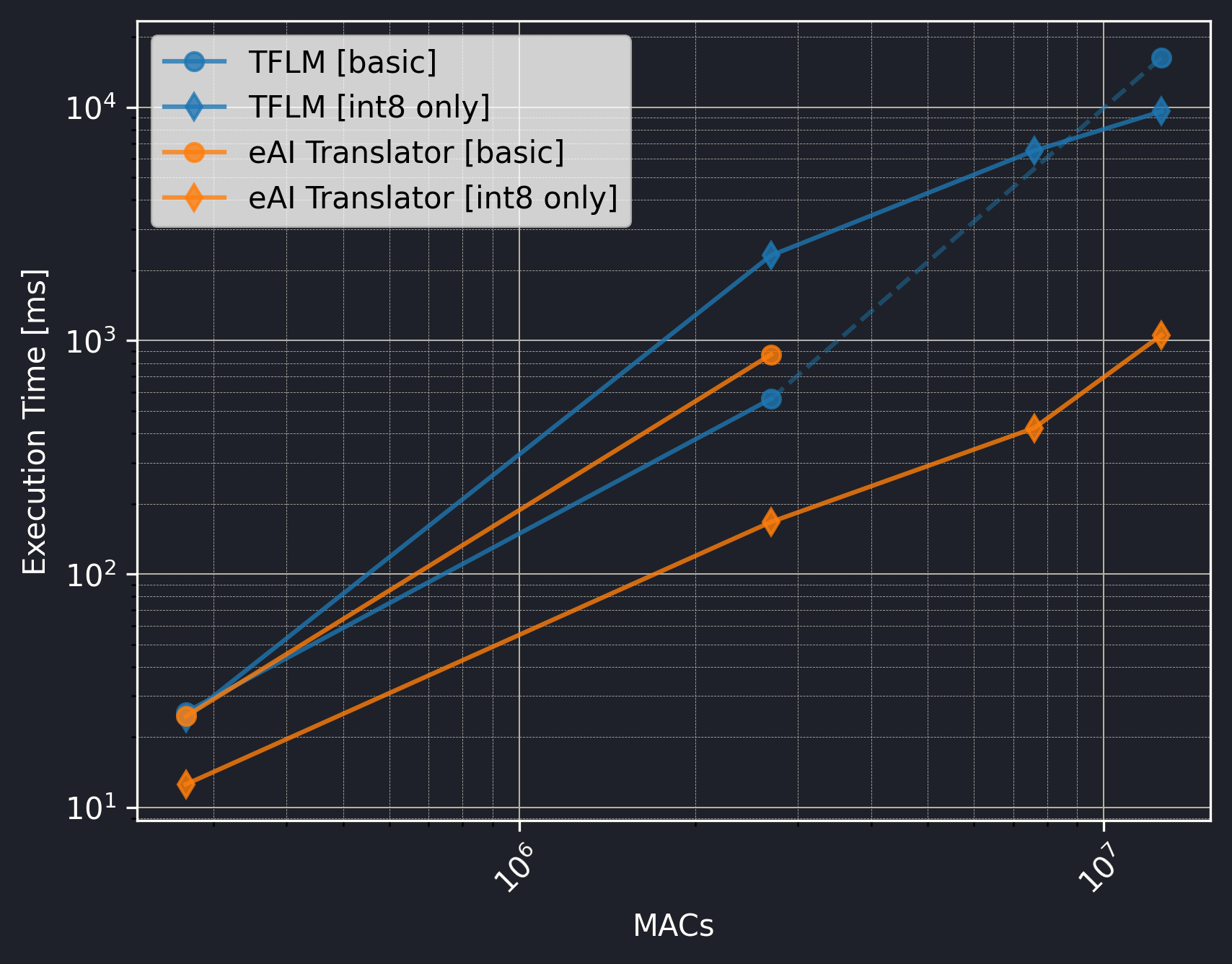

CNN - RenesasRX65N CNN - RenesasRX65N
CNN - RenesasRX65N
TinyMLPerf - RenesasRX65N TinyMLPerf - RenesasRX65N
TinyMLPerf - RenesasRX65N

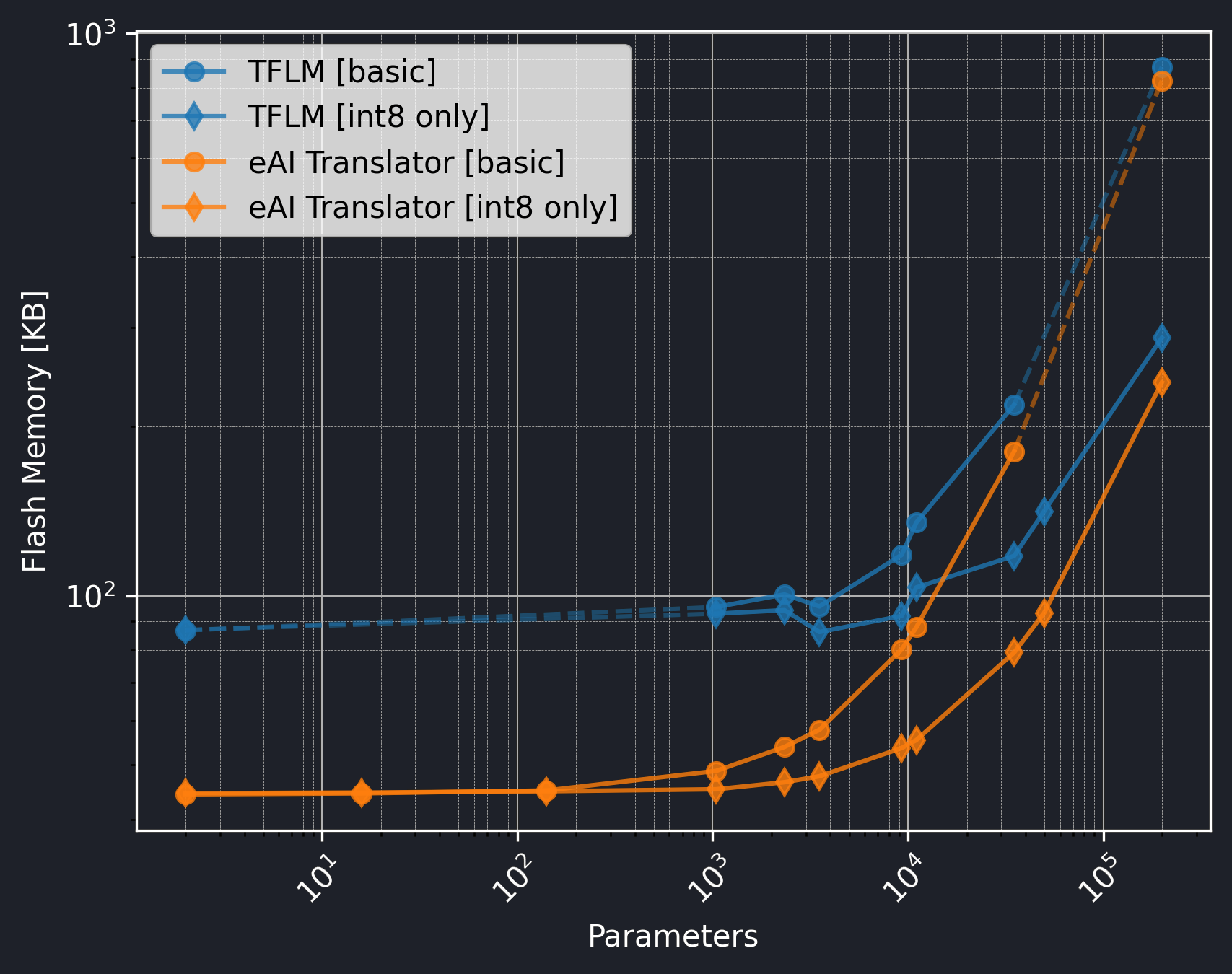

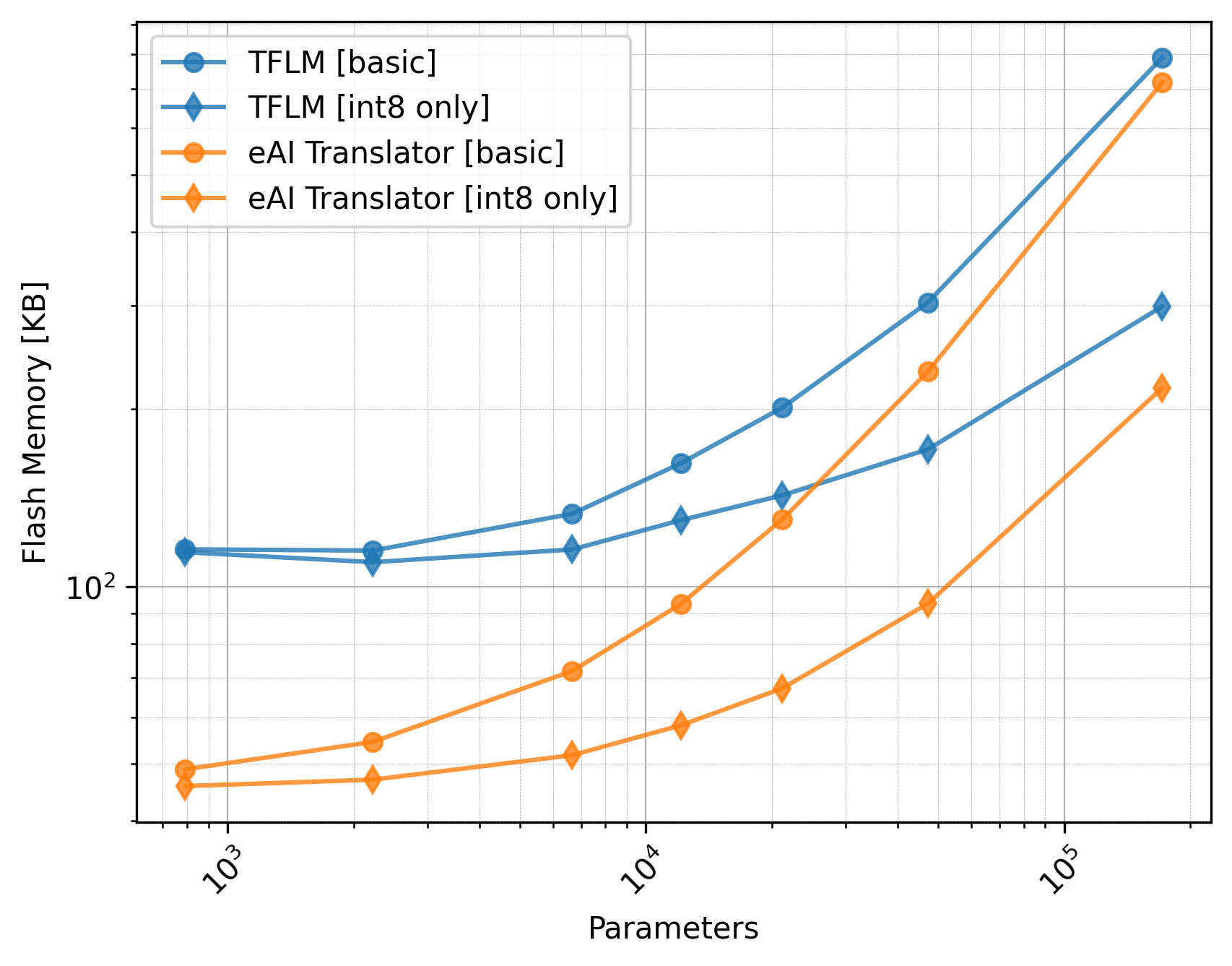

Flash Size

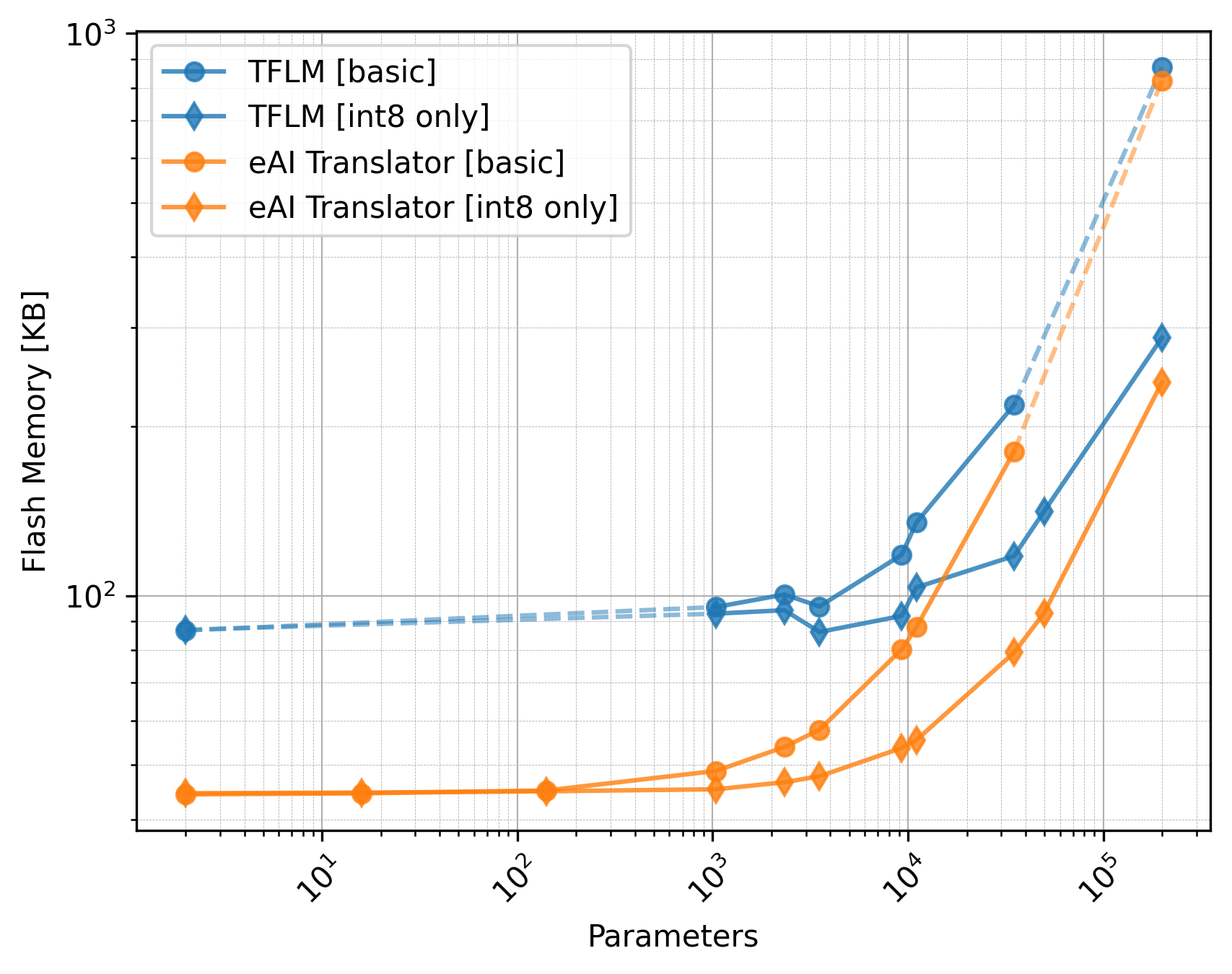

FC - RenesasRX65N FC - RenesasRX65N
FC - RenesasRX65N
CNN - RenesasRX65N CNN - RenesasRX65N
CNN - RenesasRX65N

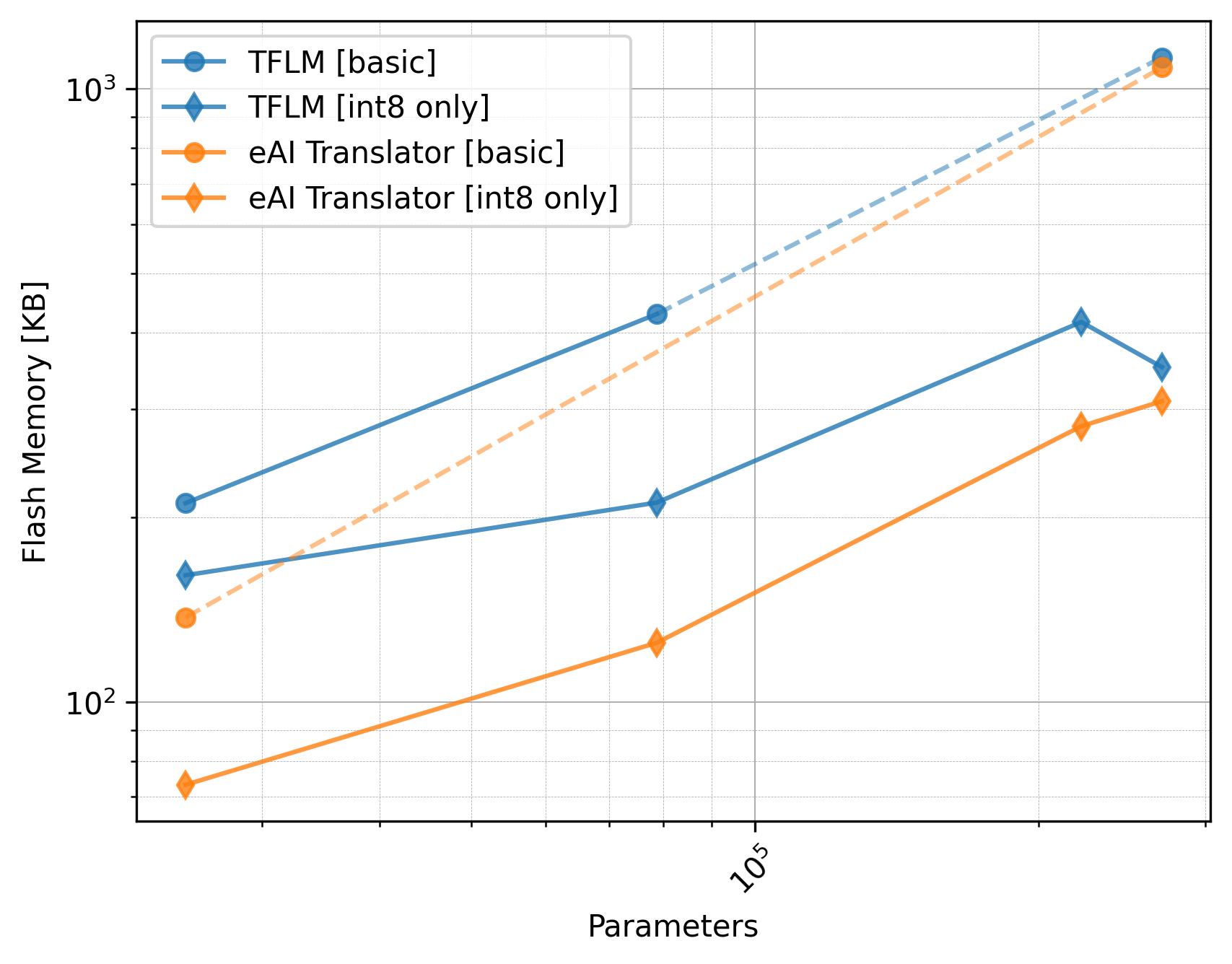

TinyMLPerf - RenesasRX65N TinyMLPerf - RenesasRX65N
TinyMLPerf - RenesasRX65N

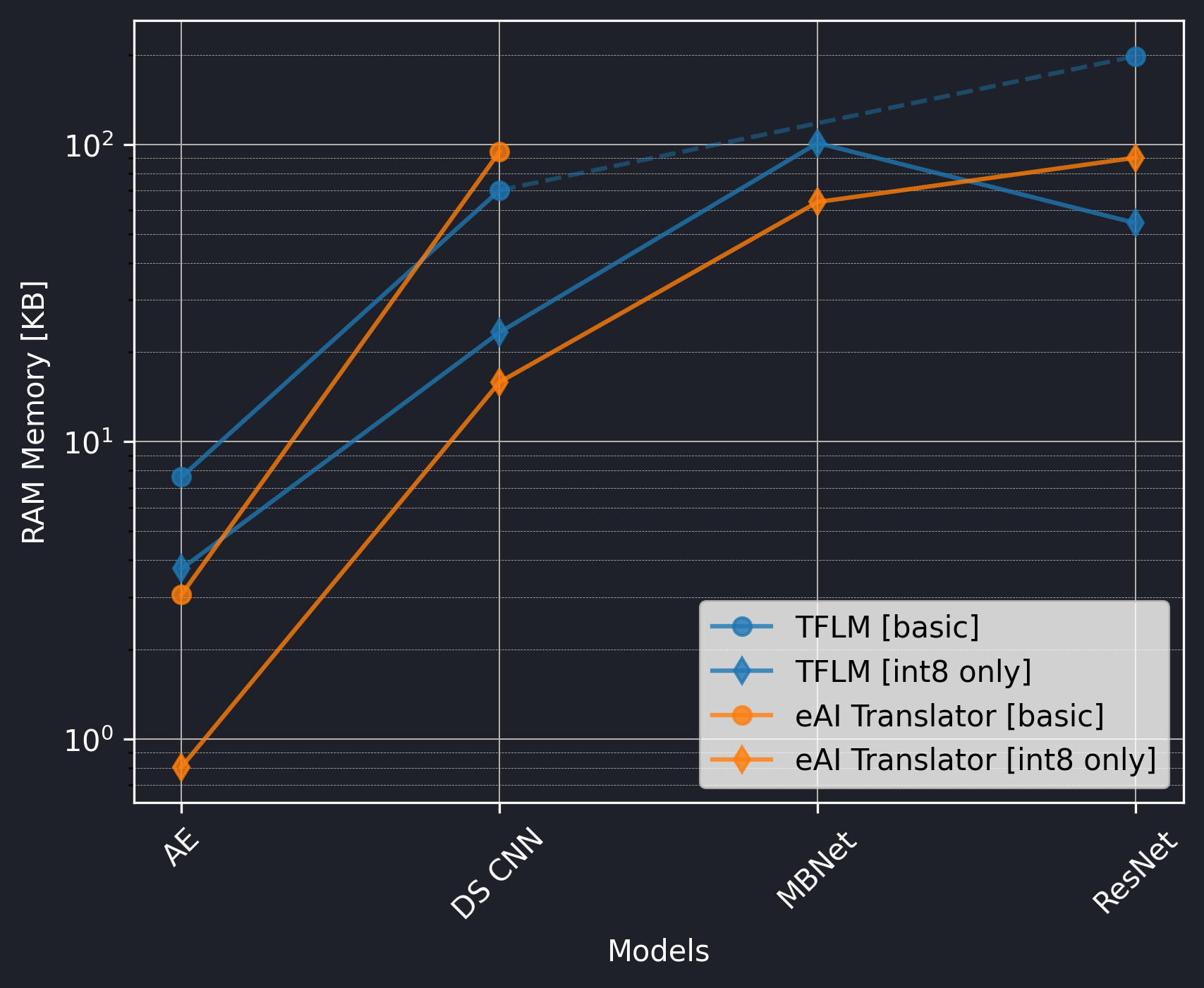

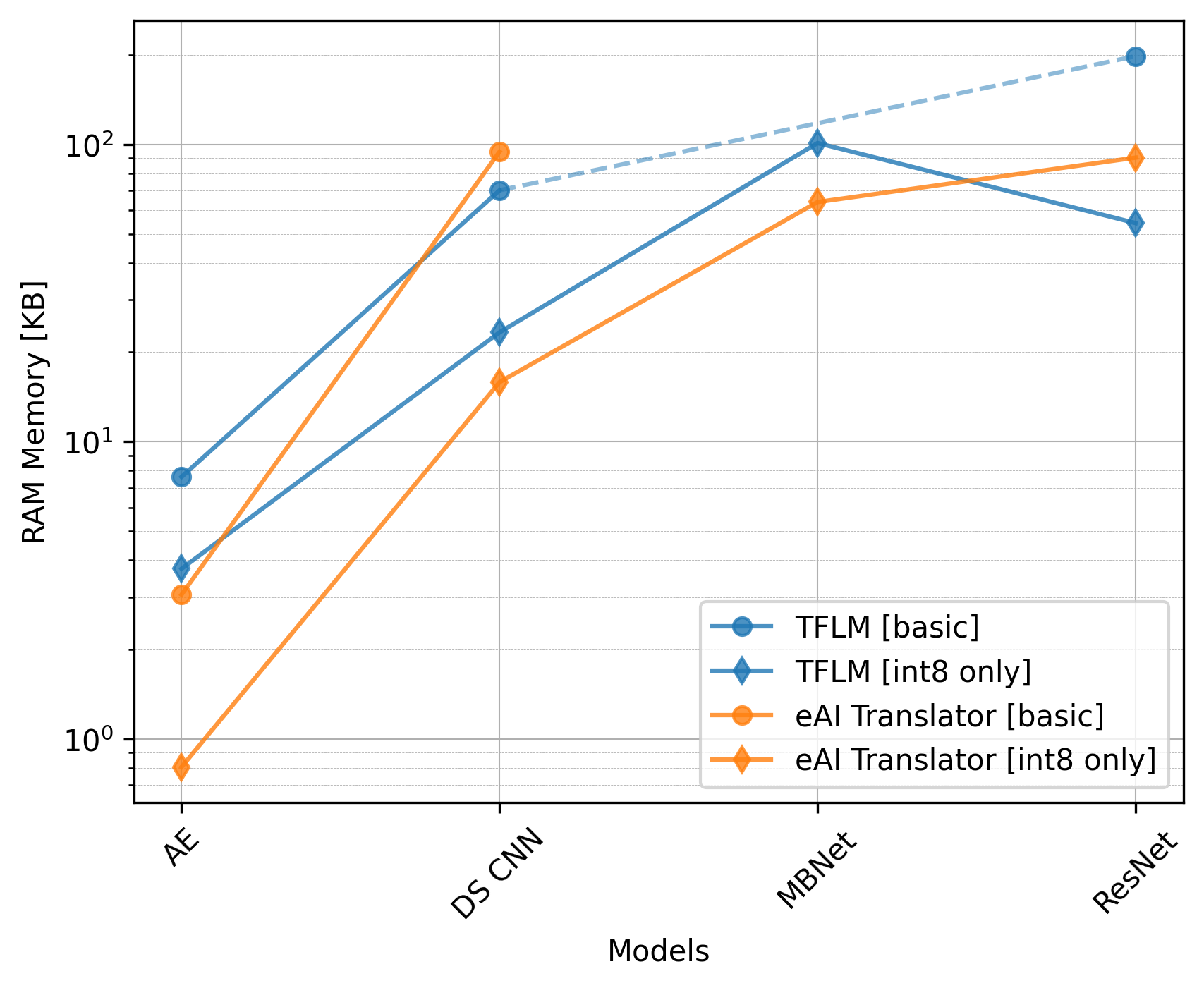

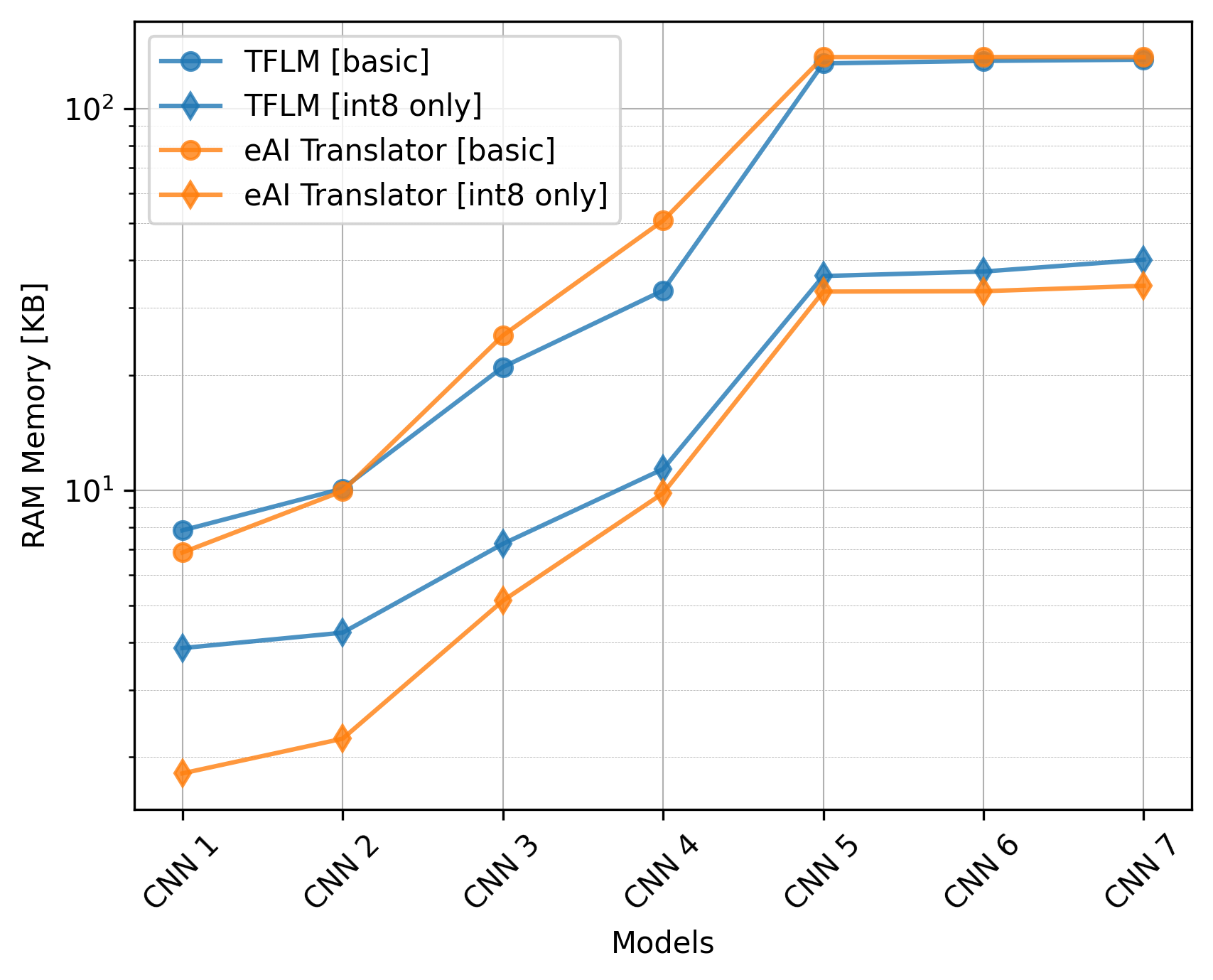

RAM Usage

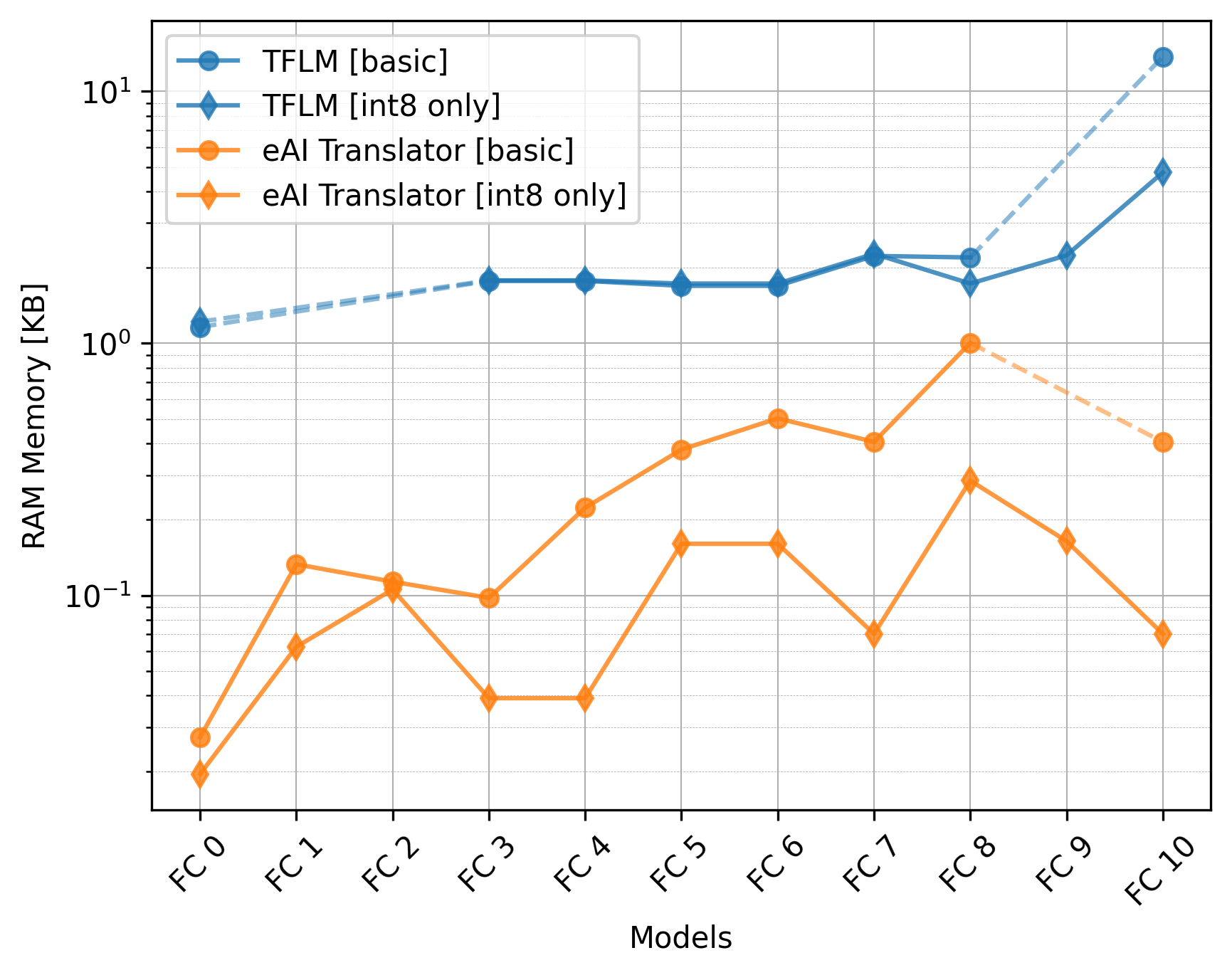

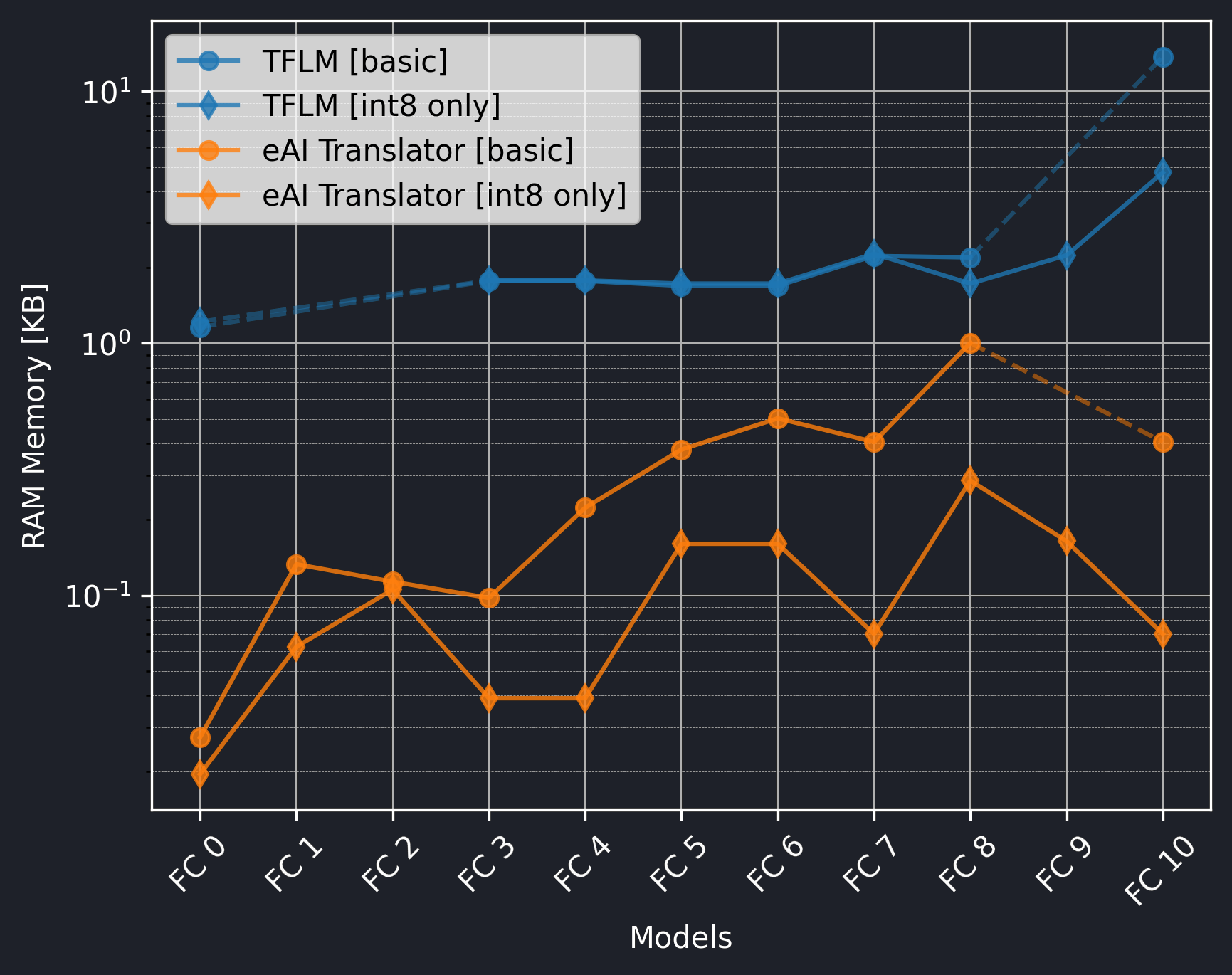

FC - RenesasRX65N FC - RenesasRX65N
FC - RenesasRX65N

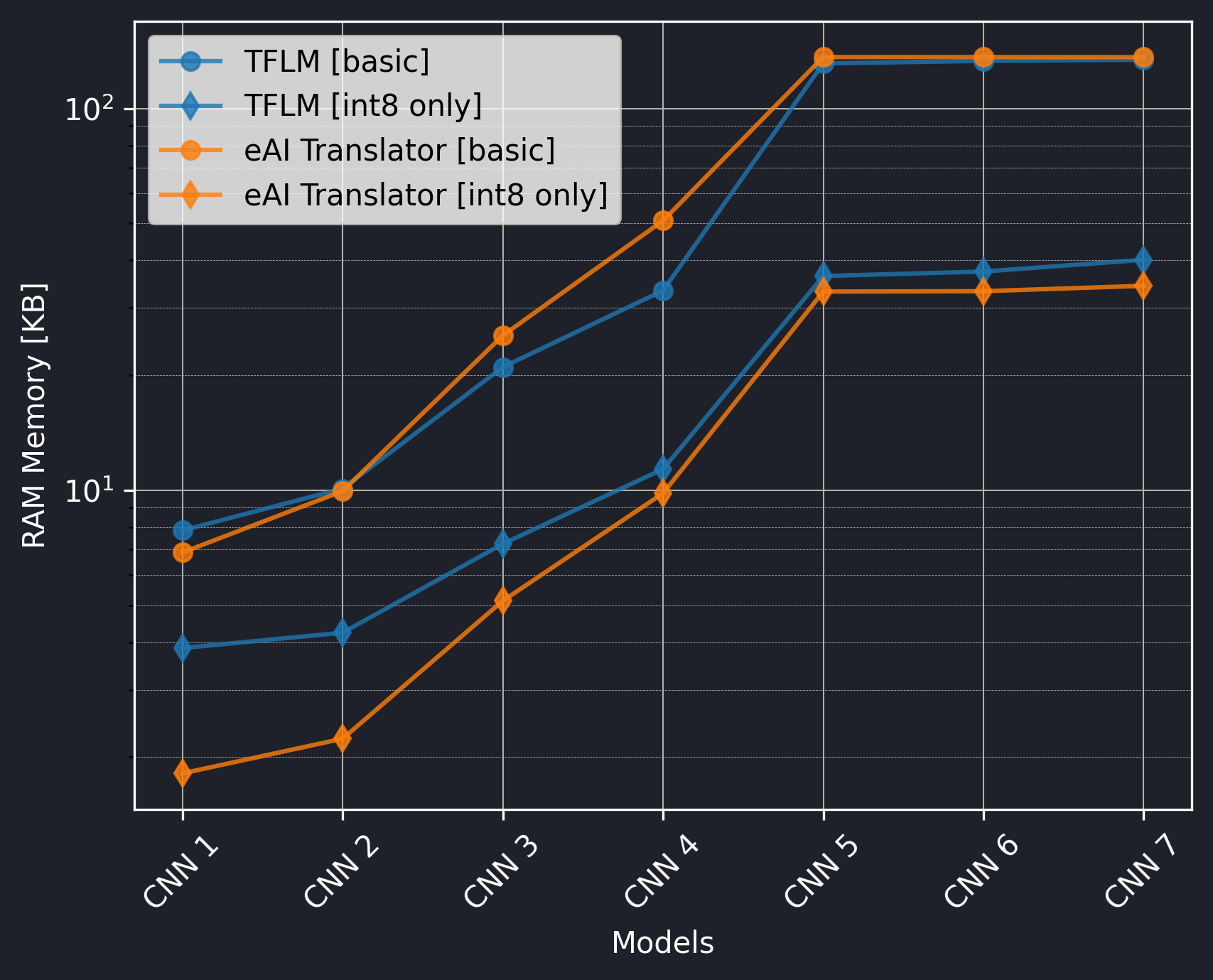

CNN - RenesasRX65N CNN - RenesasRX65N
CNN - RenesasRX65N
TinyMLPerf - RenesasRX65N TinyMLPerf - RenesasRX65N
TinyMLPerf - RenesasRX65N

Summary

  • Model Correctness:

    • Some models failed to run on the board. (1)

      1. 🙋‍♂️ For the failed FC models, the program halts for an unknown reason. For the failed TinyMLPerf models, the program is too large for the RenesasRX65N board.

    • The error rate of the TFLM and eAI Translator models are normally the same, but for some big models, the eAI Translator has an unacceptable error. (1)

      1. 🙋‍♂️ Namely, CNN_5, CNN_6, CNN_7, TinyMLPerf_MBNet, and TinyMLPerf_ResNet models.

  • Execution Time:

    • Please note that we have not utilized CMSIS-NN with TFLM. As a result, the int8 only version of TFLM could potentially yield better results. Thus, we have excluded the int8 only variants from our execution time comparisons.

    • eAI Translator is usually better. (1)

      1. 🙋‍♂️ eAI Translator is better especially for smaller models. For bigger ones the two are almost the same, or TFLM might even get a bit better.

  • Flash Size: eAI Translator is better.

  • RAM Usage: eAI Translator is slightly better.

  • Conclusion: If the error of the eAI Translator is acceptable, it is a better choice than TFLM for RenesasRX65N.
