RNN, LSTM, GRU

This study highlights the resource requirements of Simple RNN, LSTM, and GRU models.

Only TFLM could be used for these models (1). Also, all the models were deployed on the NUCLEO-L4R5ZI board.

  1. 🙋‍♂️ Edge Impulse requires an enterprise account, Renesas eAI Translator cannot convert RNNs (might be solved by further adjustments), and Ekkono does not support RNNs.

Simple 0 is excluded from the figures due to its negligible resource requirements compared to the other models and keeping the figures readable. Simple 2 is also excluded from the figures because its basic version failed to run. All models' information is available in the tables below.

Model Variant Parameters MACs Error Exe (ms) Flash (kB) RAM (kB)
Simple 0 basic 5 9 0 0.107 110.4375 8.140625
Simple 0 int8 only 5 9 0.005785 0.14567 111.640625 7.1328125
Simple 1 basic 8288 827200 0 107.2074 218.65625 112.6328125
Simple 1 int8 only 8288 827200 0.004366 292.9049 590.8125 103.2578125
Simple 2 basic 32960 3292800 - - - -
Simple 2 int8 only 32960 3292800 0.004072 292.9049 615.1875 106.3828125
Shakespeare 1 basic 12513 1056300 0 141.1776 251.578125 127.625
Shakespeare 1 int8 only 12513 1056300 0.020862 168.4068 620.84375 107.5859375
Shakespeare 2 basic 37249 3321900 0 377.1719 348.203125 175.625
Shakespeare 2 int8 only 37249 3321900 0.021797 323.4767 645.1953125 107.5859375
LSTM basic 26912 2702400 0 362.2378 472.9609375 268.734375
LSTM int8 only 26912 2702400 0.013989 565.3515 769.8203125 258.359375
GRU basic 20896 2094400 0 276.7367 496.984375 298.734375
GRU int8 only 20896 2094400 0.044773 374.4158 809.7890625 295.359375

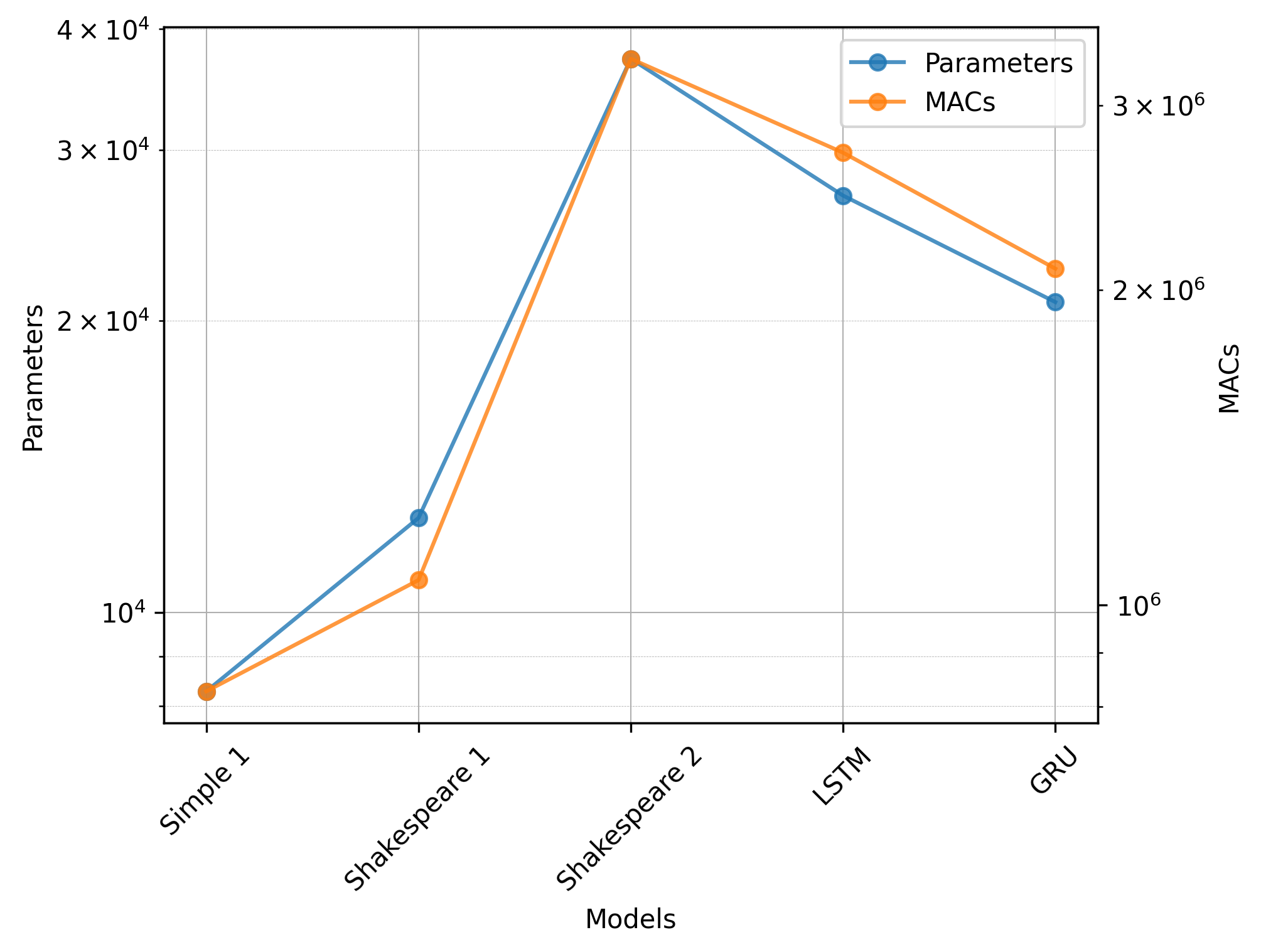

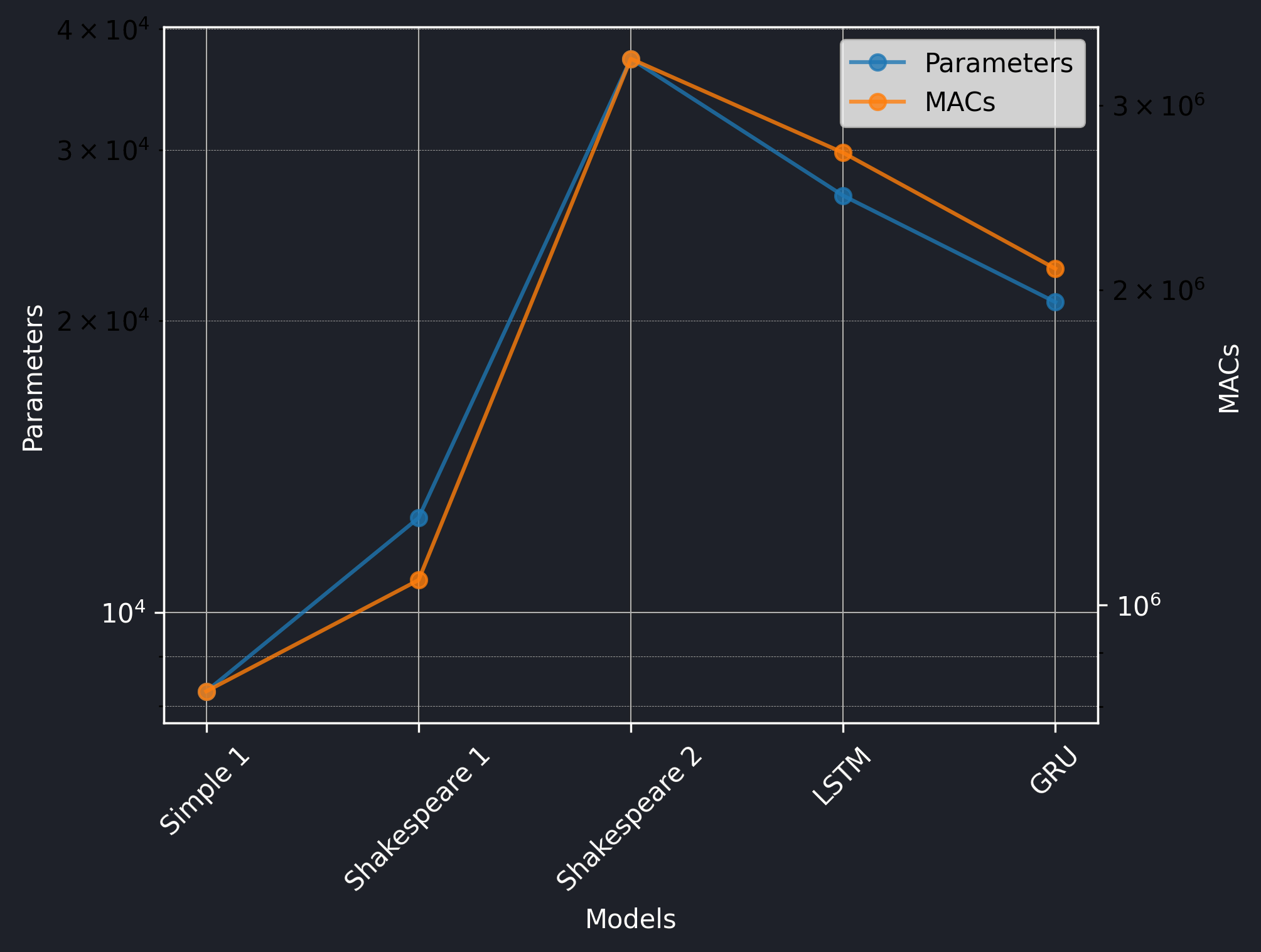

Models

RNN parameters and MACs RNN parameters and MACs
RNN parameters and MACs

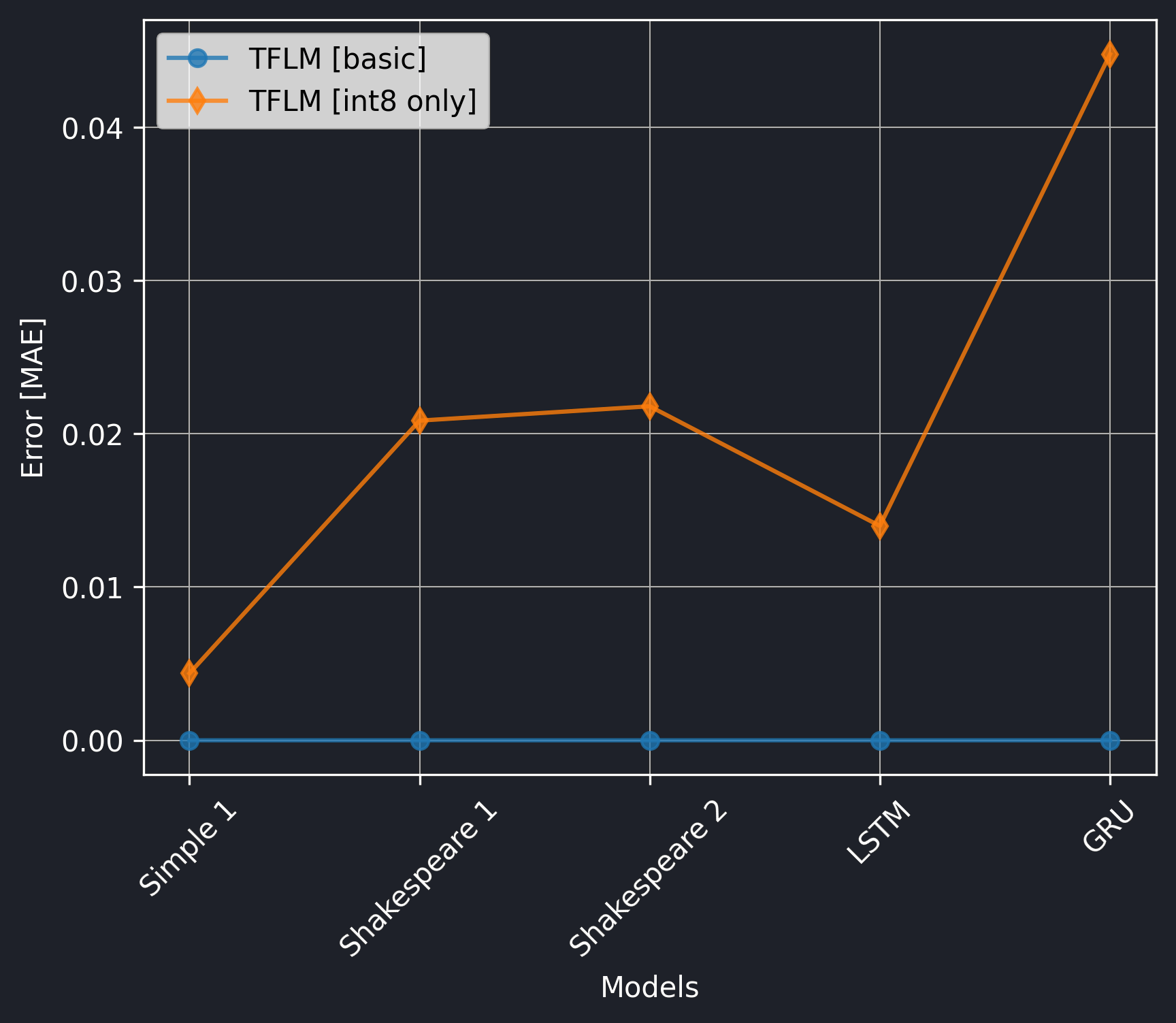

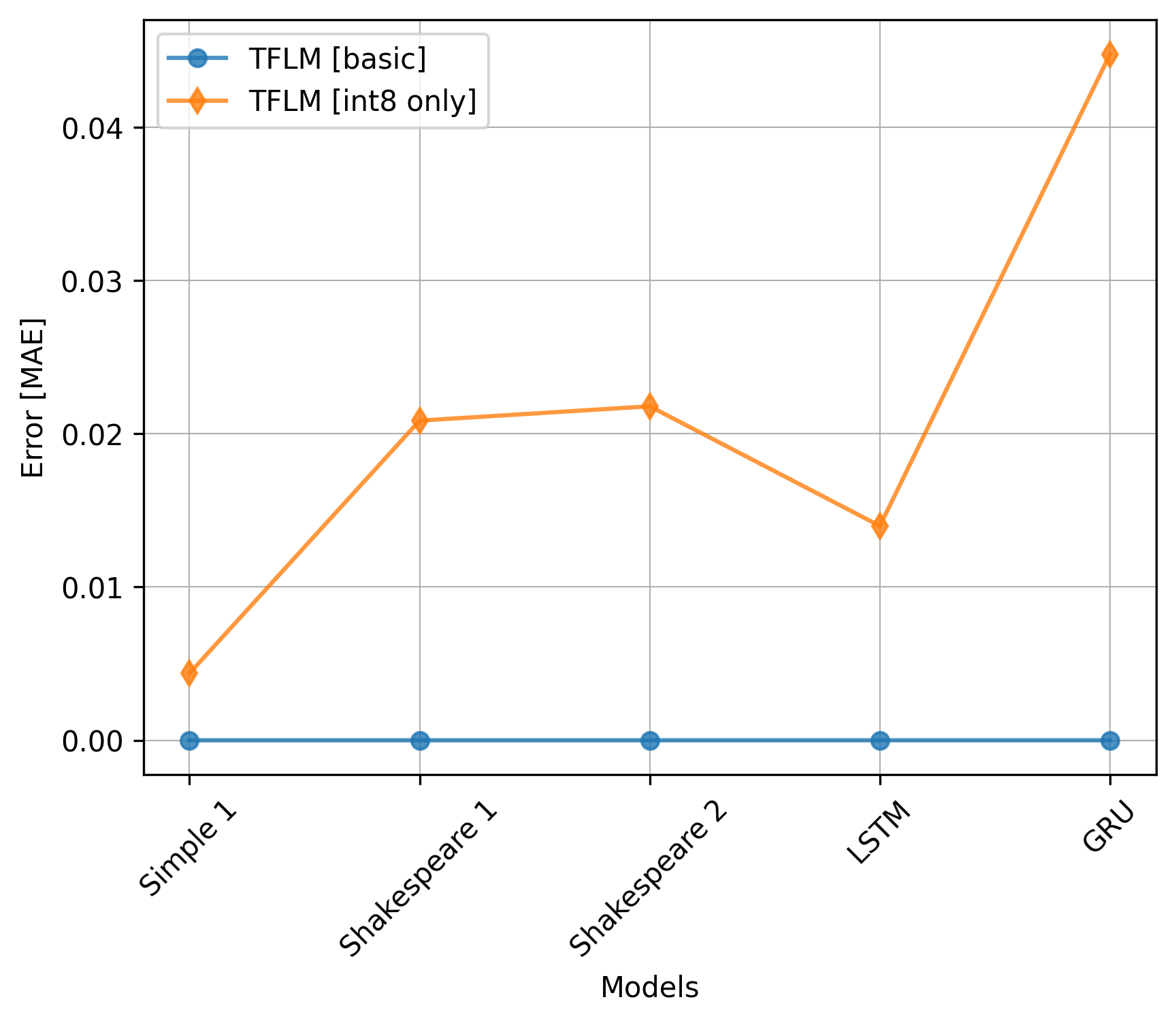

Error

RNN error RNN error
RNN error

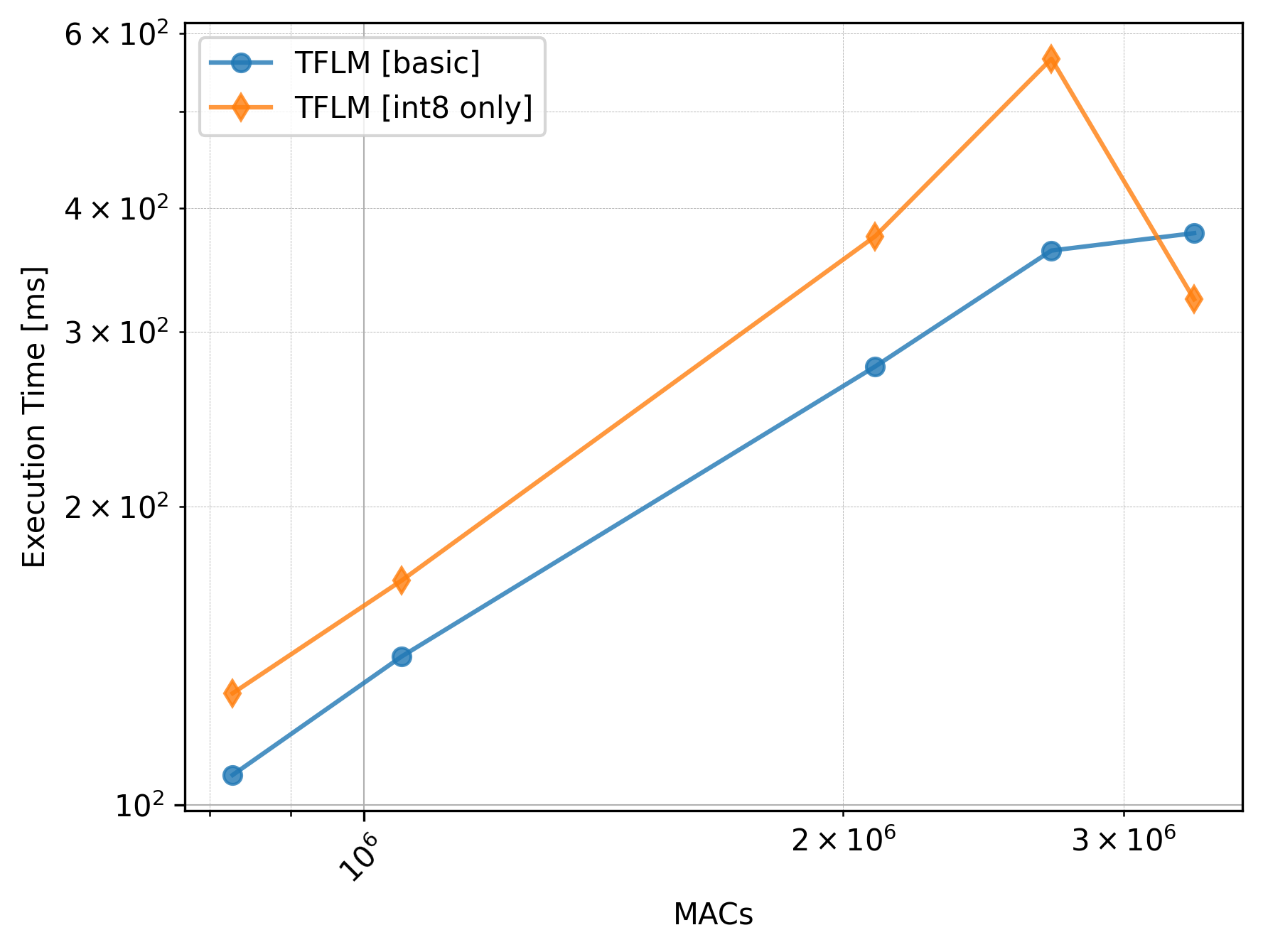

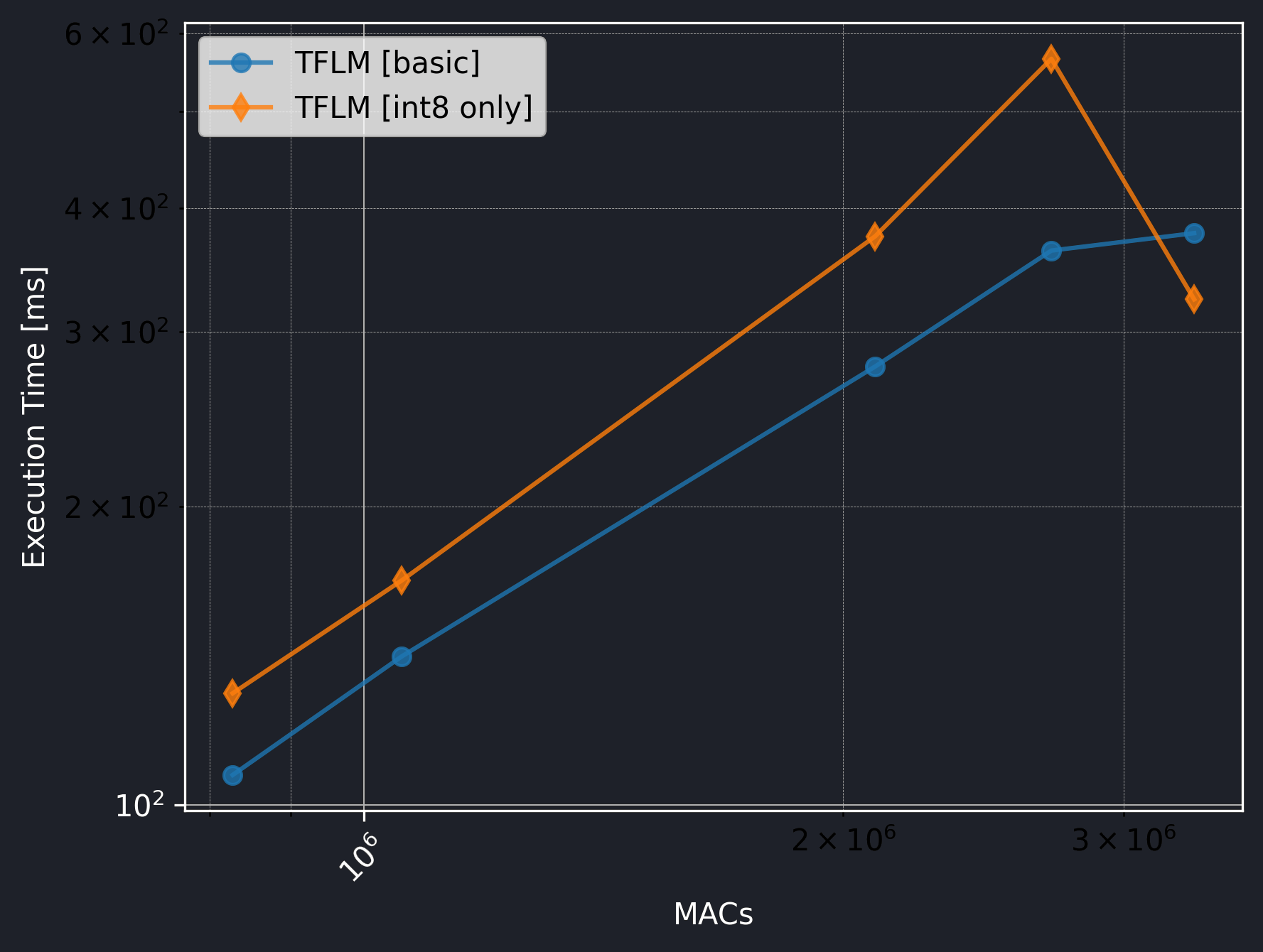

Execution Time

RNN execution time RNN execution time
RNN execution time

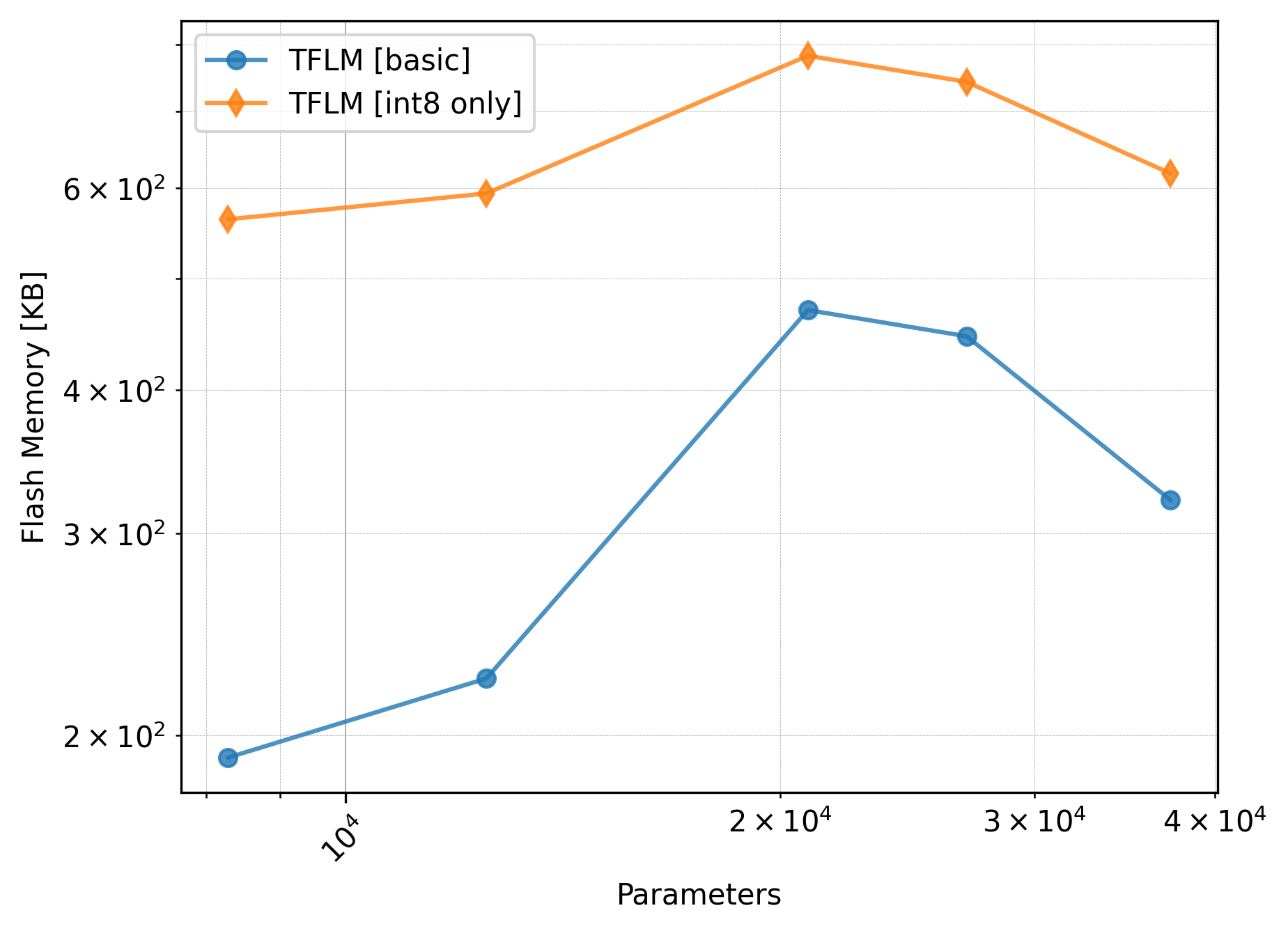

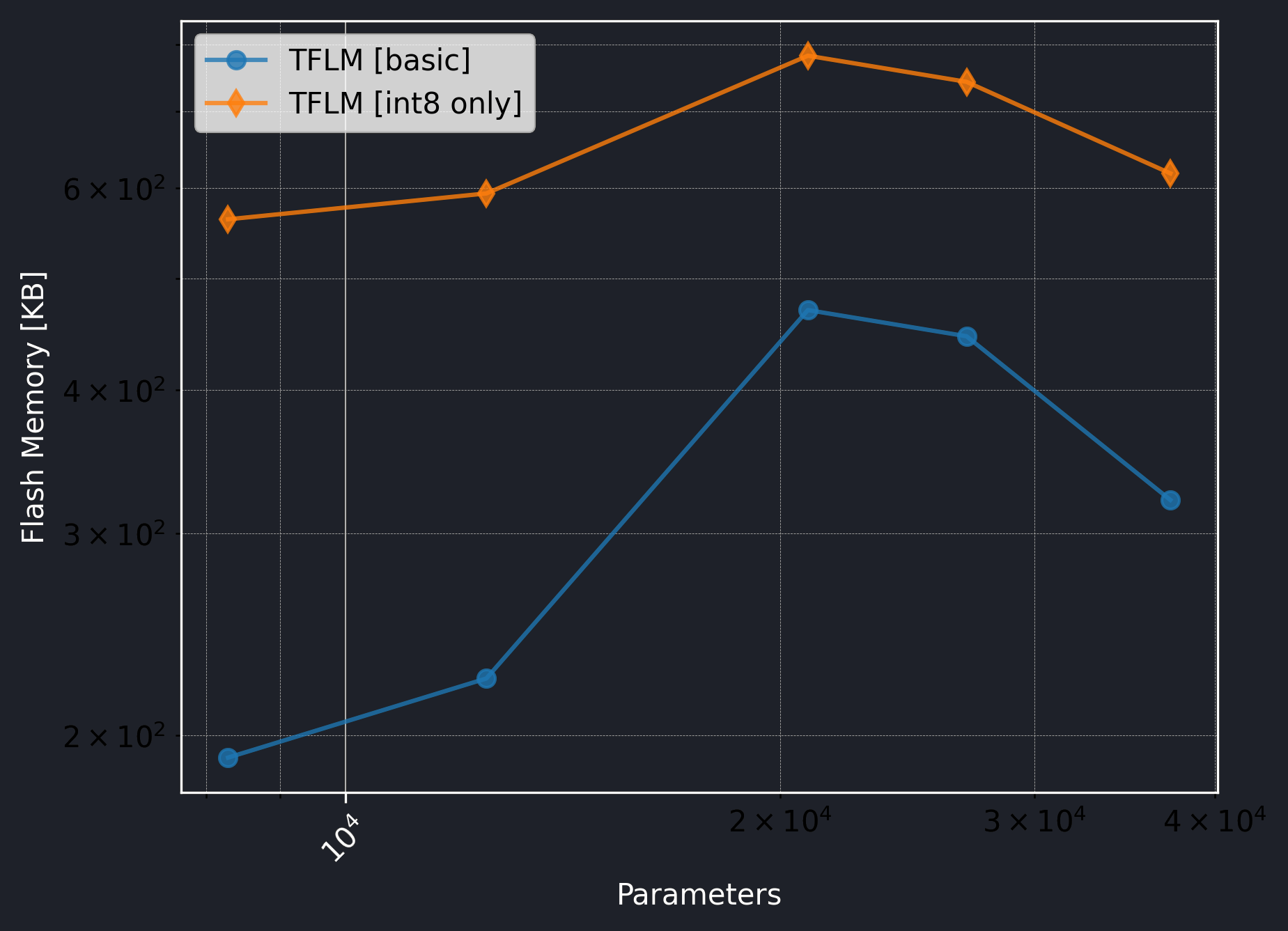

Flash Size

RNN flash size RNN flash size
RNN flash size

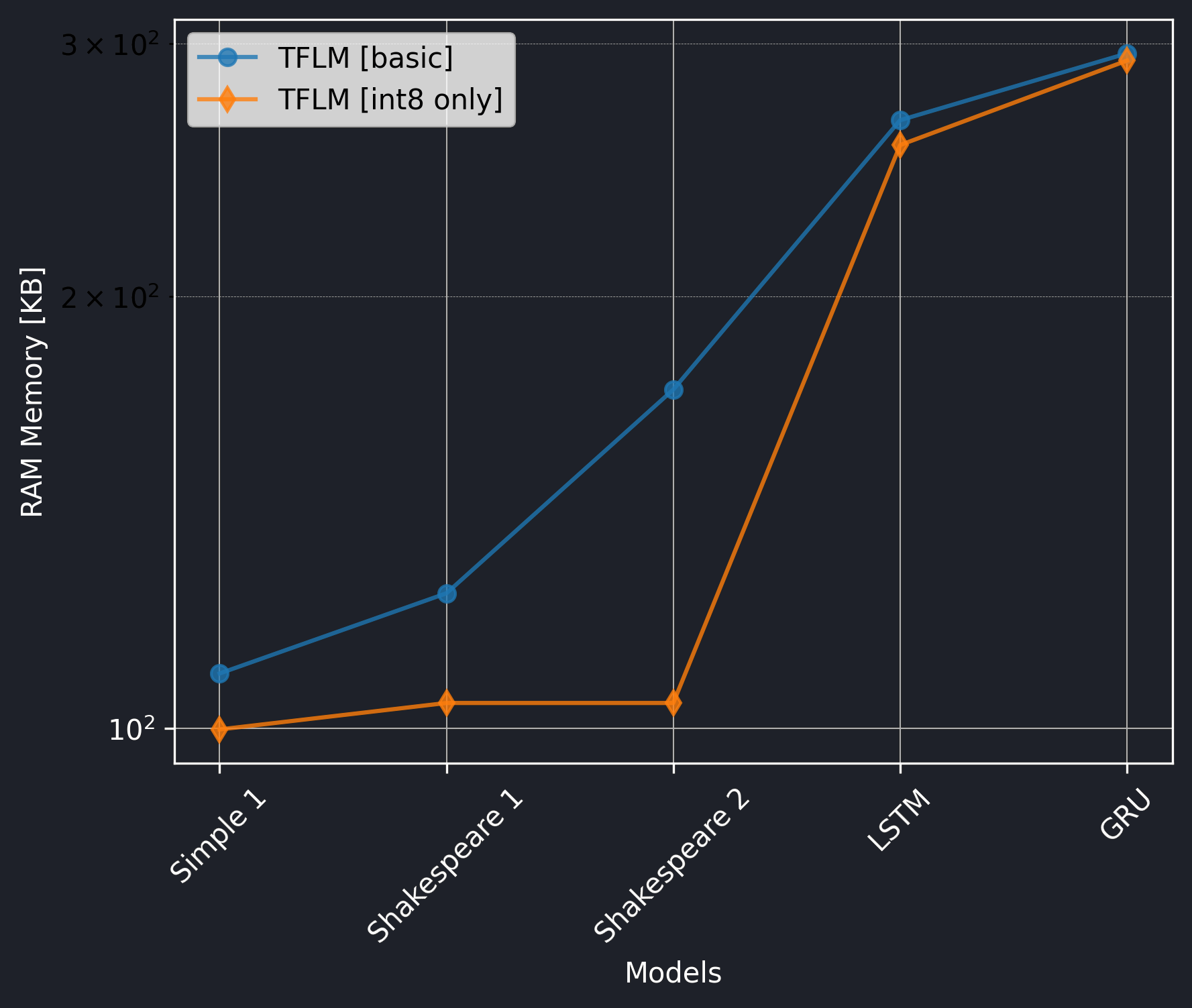

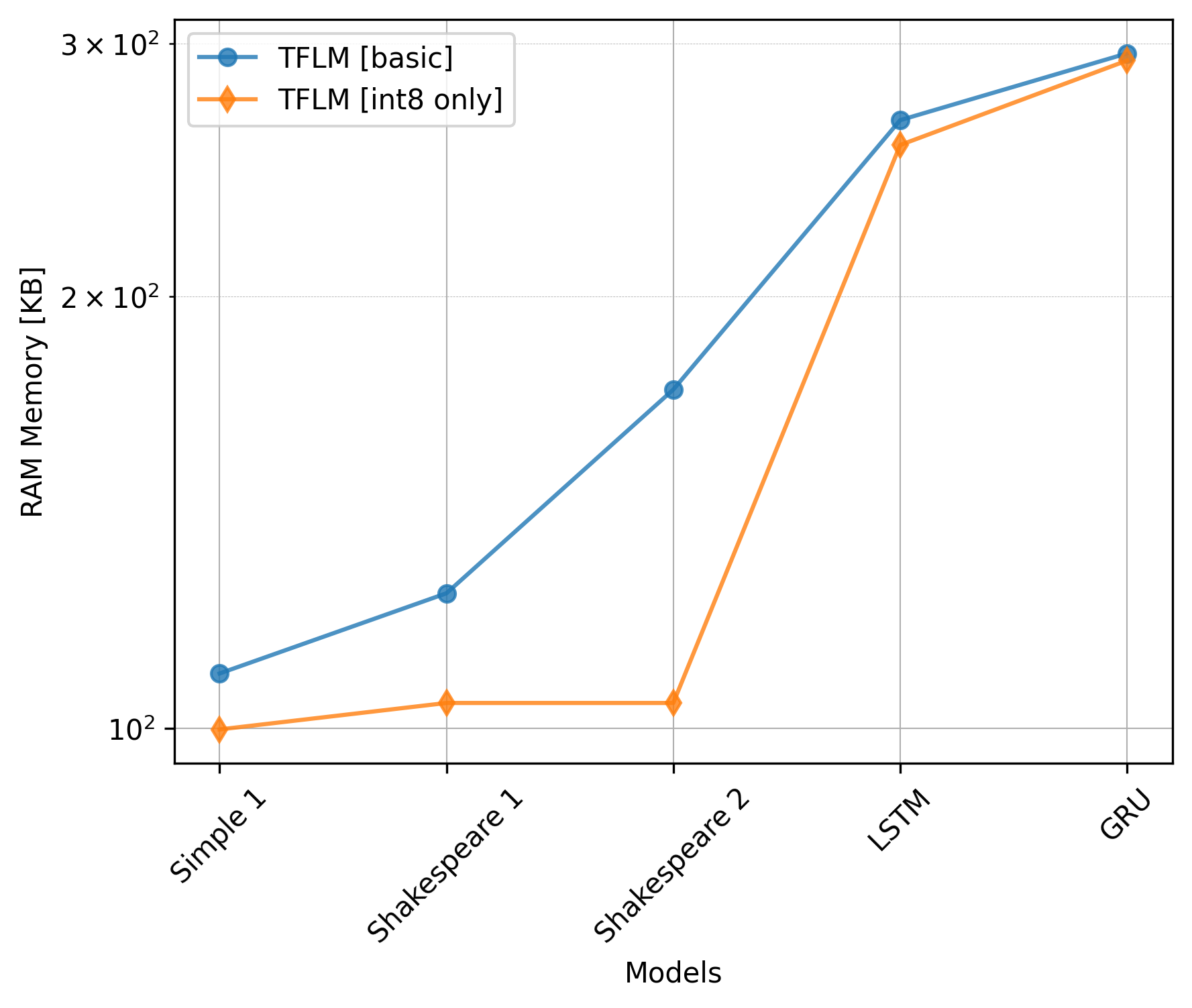

RAM Usage

RNN RAM usage RNN RAM usage
RNN RAM usage

Summary

  • Model Correctness: Except the basic version of Simple 2 which runs out of memory, all models got relatively acceptable error rates. The most concerning case belongs to GRU which might require some attention.

  • Execution Time: It is surprising that except for Shakespeare 2, the int8 only versions of the models have higher execution times.

  • Flash Size: It is surprising that the int8 only versions of the models have larger flash sizes.

  • RAM Usage: int8 only requires less RAM. (1)

    1. 🙋‍♂️ We expected the int8 only to have the advantage with a bigger margin.

  • Conclusion: In most cases, the basic version of the models is more efficient.

LSTM vs GRU

It's believed that LSTM is more powerful than GRU, but GRU is more parameter and computation efficient. Also, in our study, we see that LSTM has more parameters and MACs than GRU. However, it is interesting that using TFLM, GRU has a larger flash size and RAM usage than LSTM. Still, it's executed faster than LSTM.
